DispatcherServlet流程简要分析

发表于 分类于

logo

基本概念

DispatcherServlet 是 Spring MVC 框架的核心组件，作为一个 前端控制器（Front Controller）负责将所有传入的 HTTP 请求分发给适当的处理器（Controller）并协调视图解析和响应生成。它的作用是集中管理 Web 应用中的所有请求调度流程，使得应用能够解耦并保持整洁有序的架构。

作用

前端控制器模式的实现：

  • DispatcherServlet 实现了前端控制器模式（Front Controller）即所有客户端请求首先都会经过该Servlet，然后由它进行统一处理。
  • 通过这种集中管理的方式，可以避免每个控制器直接处理请求，从而提高了系统的可维护性和扩展性。

请求分发：

  • DispatcherServlet 根据 URL 和请求参数，使用 HandlerMapping 找到与请求对应的处理器（通常是控制器类中的某个方法）。
  • 它不仅负责路由请求，还能够处理请求参数的解析、验证等操作。

调用处理器：

  • 找到合适的处理器后，DispatcherServlet 使用 HandlerAdapter 负责调用处理器（Controller）并将请求数据传递给它。
  • HandlerAdapter 是将请求与控制器方法参数适配的组件，可以处理多种类型的控制器，包括注解式控制器、简单的控制器等。

视图解析：

  • 处理器返回视图名称和模型数据后，DispatcherServlet 使用 ViewResolver 解析视图（例如 JSP、Thymeleaf 等模板引擎）找到对应的视图模板。
  • 它负责将模型数据注入到视图模板中，最终渲染成 HTML 响应。

异常处理与响应生成：

  • DispatcherServlet 还负责处理异常，将错误信息封装为用户友好的响应。
  • DispatcherServlet 将生成的 HTML 或其他类型的响应数据写入 HttpServletResponse，返回给客户端。

流程图

image-20241010171153287

首先用户发送请求——>DispatcherServlet，前端控制器收到请求后自己不进行处理，而是委托给其他的解析器进行 处理，作为统一访问点，进行全局的流程控制

DispatcherServlet——>HandlerMapping， HandlerMapping 将会把请求映射为 HandlerExecutionChain 对象（包含一 个Handler 处理器（页面控制器）对象、多个HandlerInterceptor 拦截器）对象，通过这种策略模式，很容易添加新 的映射策略

DispatcherServlet——>HandlerAdapter，HandlerAdapter 将会把处理器包装为适配器，从而支持多种类型的处理器， 即适配器设计模式的应用，从而很容易支持很多类型的处理器

HandlerAdapter——>处理器功能处理方法的调用，HandlerAdapter 将会根据适配的结果调用真正的处理器的功能处 理方法，完成功能处理；并返回一个ModelAndView 对象（包含模型数据、逻辑视图名）

ModelAndView 的逻辑视图名——> ViewResolver，ViewResolver 将把逻辑视图名解析为具体的View，通过这种策 略模式，很容易更换其他视图技术

View——>渲染，View 会根据传进来的Model 模型数据进行渲染，此处的Model 实际是一个Map 数据结构，因此 很容易支持其他视图技术

返回控制权给DispatcherServlet，由DispatcherServlet 返回响应给用户，到此一个流程结束

image-20241010160411868

调试分析

控制器

@RequestMapping("/thymeleaf")
public String thymeleafExample(@RequestParam("code") String code, Model model) {
    model.addAttribute("code", code);
    return "thymeleaf/index";
}

视图内容

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Thymeleaf Example</title>
</head>
<body>
<h1>Thymeleaf Example</h1>
<p>Code: <span th:text="${code}"></span></p>
</body>
</html>

doGet入口

servlet处理get请求是doGet方法，所以定位到 DispatcherServlet 的 doGet 方法

protected final void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    this.processRequest(request, response);
}

processRequest方法如下

protected final void processRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    long startTime = System.currentTimeMillis();
    Throwable failureCause = null;
    LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
    LocaleContext localeContext = this.buildLocaleContext(request);
    RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
    ServletRequestAttributes requestAttributes = this.buildRequestAttributes(request, response, previousAttributes);
    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
    asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
    // 初始化context
    this.initContextHolders(request, localeContext, requestAttributes);

    try {
        // doService
        this.doService(request, response);
    } catch (IOException | ServletException var16) {
        failureCause = var16;
        throw var16;
    } catch (Throwable var17) {
        failureCause = var17;
        throw new NestedServletException("Request processing failed", var17);
    } finally {
        // 重置context
        this.resetContextHolders(request, previousLocaleContext, previousAttributes);
        if (requestAttributes != null) {
            requestAttributes.requestCompleted();
        }
        this.logResult(request, response, (Throwable)failureCause, asyncManager);
        this.publishRequestHandledEvent(request, response, startTime, (Throwable)failureCause);
    }
}

核心调用doService方法

protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
    this.logRequest(request);
    Map<String, Object> attributesSnapshot = null;
    if (WebUtils.isIncludeRequest(request)) {
        attributesSnapshot = new HashMap();
        Enumeration<?> attrNames = request.getAttributeNames();
        label116:
        while(true) {
            String attrName;
            do {
                if (!attrNames.hasMoreElements()) {
                    break label116;
                }

                attrName = (String)attrNames.nextElement();
            } while(!this.cleanupAfterInclude && !attrName.startsWith("org.springframework.web.servlet"));

            attributesSnapshot.put(attrName, request.getAttribute(attrName));
        }
    }

    request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.getWebApplicationContext());
    request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
    request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
    request.setAttribute(THEME_SOURCE_ATTRIBUTE, this.getThemeSource());
    if (this.flashMapManager != null) {
        FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
        if (inputFlashMap != null) {
            request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
        }
        request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
        request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
    }
    RequestPath previousRequestPath = null;
    if (this.parseRequestPath) {
        previousRequestPath = (RequestPath)request.getAttribute(ServletRequestPathUtils.PATH_ATTRIBUTE);
        ServletRequestPathUtils.parseAndCache(request);
    }
    try {
        // 核心 doDispatch分发request请求
        this.doDispatch(request, response);
    } finally {
        if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted() && attributesSnapshot != null) {
            this.restoreAttributesAfterInclude(request, attributesSnapshot);
        }
        if (this.parseRequestPath) {
            ServletRequestPathUtils.setParsedRequestPath(previousRequestPath, request);
        }
    }
}

请求分发

doDispatch 方法是真正处理请求的核心方法，重点函数已添加注释，该方法中主要的函数总结为：

getHandler：获取一个chain，包含：匹配出request中的处理器(即编写的controller) + 对应的拦截器

getHandlerAdapter：获取能执行chain的 处理器适配器

applyPreHandle：调用前置拦截器

ha.handle：调用处理器(controller)

applyDefaultViewName：获取视图名

applyPostHandle：调用后置拦截器

processDispatchResult：视图渲染处理

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;
    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                // 判断是不是文件上传类型的request
                processedRequest = this.checkMultipart(request);
                multipartRequestParsed = processedRequest != request;

                // 根据request获取匹配的handler
                mappedHandler = this.getHandler(processedRequest);
                if (mappedHandler == null) {
                    this.noHandlerFound(processedRequest, response);
                    return;
                }

                // 根据handler获取匹配的handlerAdapter
                HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
                String method = request.getMethod();
                boolean isGet = HttpMethod.GET.matches(method);
                if (isGet || HttpMethod.HEAD.matches(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if ((new ServletWebRequest(request,response)).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }

                // 应用前置的拦截器
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }

                // 真正handle处理，并返回modelAndView对象
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }
				// 通过视图的prefix和postfix获取完整的视图名
                this.applyDefaultViewName(processedRequest, mv);

                // 应用后置的拦截器
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            } catch (Exception var20) {
                dispatchException = var20;
            } catch (Throwable var21) {
                dispatchException = new NestedServletException("Handler dispatch failed", var21);
            }

			// 处理handler处理的结果，显然就是对ModelAndView 或者 出现的Excpetion处理
            this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);

        } catch (Exception var22) {
            // 对页面渲染完成里调用拦截器中的AfterCompletion方法
            this.triggerAfterCompletion(processedRequest, response, mappedHandler, var22);
        } catch (Throwable var23) {
            this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", var23));
        }

    } finally {
        if (asyncManager.isConcurrentHandlingStarted()) {
            if (mappedHandler != null) {
                mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
            }
        } else if (multipartRequestParsed) {
            // 清除由多个部分组成的请求使用的所有资源
            this.cleanupMultipart(processedRequest);
        }

    }
}

映射器和适配器的处理

getHandler

遍历 handlerMappings

protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        Iterator var2 = this.handlerMappings.iterator();

        while(var2.hasNext()) {
            HandlerMapping mapping = (HandlerMapping)var2.next();
            // 核心方法getHandler
            HandlerExecutionChain handler = mapping.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}

这个handlerMappings：处理器映射，保存了每一个处理器可以处理哪些请求的方法的映射信息

  • RequestMappingHandlerMapping：基于注解，如@RequestMapping的请求映射
  • WelcomePageHandlerMapping：欢迎页面
  • BeanNameUrlHandlerMapping：根据 Bean 的名称来处理 URL 请求映射
  • RouterFunctionMapping：用于处理基于函数式编程风格的请求映射，而不是基于注解的方式
  • SimpleUrlHandlerMapping：简单的URL到控制器的直接映射，通常通过配置文件如application.properties

image-20241010180329266

其中的 RequestMappingHandlerMapping 在内存马的学习中已经见到过，其保存的就是关于请求的信息

那么 RequestMappingHandlerMapping['mappingRegistry']['registry'] 存储的就是对应的 @Controller 信息

image-20241010182137640

跟进到核心方法：AbstractHandlerMapping#getHandler

public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    // 获取URI对应的方法
    Object handler = this.getHandlerInternal(request);
    if (handler == null) {
        handler = this.getDefaultHandler();
    }

    if (handler == null) {
        return null;
    } else {
        // Bean名称或解析处理程序
        if (handler instanceof String) {
            String handlerName = (String)handler;
            handler = this.obtainApplicationContext().getBean(handlerName);
        }

        if (!ServletRequestPathUtils.hasCachedPath(request)) {
            this.initLookupPath(request);
        }
		// 获取HandlerExecutionChain
        HandlerExecutionChain executionChain = this.getHandlerExecutionChain(handler, request);
        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Mapped to " + handler);
        } else if (this.logger.isDebugEnabled() && !DispatcherType.ASYNC.equals(request.getDispatcherType())) {
            this.logger.debug("Mapped to " + executionChain.getHandler());
        }
		// 跨域配置
        if (this.hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
            CorsConfiguration config = this.getCorsConfiguration(handler, request);
            if (this.getCorsConfigurationSource() != null) {
                CorsConfiguration globalConfig = this.getCorsConfigurationSource().getCorsConfiguration(request);
                config = globalConfig != null ? globalConfig.combine(config) : config;
            }

            if (config != null) {
                config.validateAllowCredentials();
            }

            executionChain = this.getCorsHandlerExecutionChain(request, executionChain, config);
        }

        return executionChain;
    }
}

一、跟进 AbstractHandlerMethodMapping#getHandlerInternal

protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
    // 获取请求的URI路径
    String lookupPath = this.initLookupPath(request);
    this.mappingRegistry.acquireReadLock();

    HandlerMethod var4;
    try {
        // 根据URI路径从mappingRegistry中获取对应的处理方法
        HandlerMethod handlerMethod = this.lookupHandlerMethod(lookupPath, request);
        var4 = handlerMethod != null ? handlerMethod.createWithResolvedBean() : null;
    } finally {
        this.mappingRegistry.releaseReadLock();
    }
    return var4;
}

根据请求路径获取对应的处理方法(即自己写的controller对应的函数)

image-20241011102807020

二、跟进AbstractHandlerMapping#getHandlerExecutionChain

protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
    	// 创建chain，添加处理方法
        HandlerExecutionChain chain = handler instanceof HandlerExecutionChain ? (HandlerExecutionChain)handler : new HandlerExecutionChain(handler);
        Iterator var4 = this.adaptedInterceptors.iterator();
    	// 添加拦截器
        while(var4.hasNext()) {
            HandlerInterceptor interceptor = (HandlerInterceptor)var4.next();
            if (interceptor instanceof MappedInterceptor) {
                MappedInterceptor mappedInterceptor = (MappedInterceptor)interceptor;
                if (mappedInterceptor.matches(request)) {
                    chain.addInterceptor(mappedInterceptor.getInterceptor());
                }
            } else {
                chain.addInterceptor(interceptor);
            }
        }
		// 返回chain对象
        return chain;
    }

将handler作为初始参数，创建HandlerExecutionChain对象，然后遍历 adaptedInterceptors 集合，该集合里存放的都是拦截器，如果拦截器的类型是 MappedInterceptor，则调用 matches 方法去匹配一下，看一下是否是拦截当前请求的拦截器，如果是，则调用 chain.addInterceptor 方法加入到 HandlerExecutionChain 对象中；如果就是一个普通拦截器，则直接加入到 HandlerExecutionChain 对象中

image-20241011104209327

通过一、二成功获取到chain对象

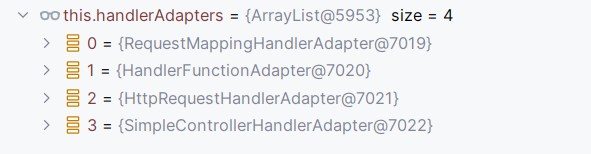

getHandlerAdapter

遍历handlerAdapters，匹配出能够支持处理方法的 处理器适配器

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
    if (this.handlerAdapters != null) {
        Iterator var2 = this.handlerAdapters.iterator();

        while(var2.hasNext()) {
            HandlerAdapter adapter = (HandlerAdapter)var2.next();
            if (adapter.supports(handler)) {
                return adapter;
            }
        }
    }
    throw new ServletException("No adapter for handler [" + handler + "]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}

这个handlerAdapters：HandlerAdapter的主要作用是根据处理器的类型调用相应的处理器方法。由于处理器的类型可能多种多样，如方法、类、Bean等，因此需要一个适配器来统一处理这些不同类型的处理器。HandlerAdapter就充当了这样的角色，它屏蔽了处理器的具体实现细节，使得DispatcherServlet可以以统一的方式调用处理器。

  • RequestMappingHandlerAdapter：用于适配基于注解的处理器方法，会解析注解中的信息，并调用相应的处理器方法
  • HandlerFunctionAdapter：用于适配基于函数式编程模型的处理器
  • HttpRequestHandlerAdapter：用于适配实现了HttpRequestHandler接口的处理器
  • SimpleControllerHandlerAdapter：用于适配实现了Controller接口的处理器，已被@Controller注解所取代

image-20241011115428439

这里获取的就是 RequestMappingHandlerAdapter

applyPreHandle

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
    for(int i = 0; i < this.interceptorList.size(); this.interceptorIndex = i++) {
        HandlerInterceptor interceptor = (HandlerInterceptor)this.interceptorList.get(i);
        if (!interceptor.preHandle(request, response, this.handler)) {
            this.triggerAfterCompletion(request, response, (Exception)null);
            return false;
        }
    }
    return true;
}

遍历调用 interceptorList 中的拦截器 preHandle 方法

image-20241011121055925

ha.handle

https://blog.csdn.net/weixin_45480785/article/details/116595206

https://www.cnblogs.com/RunningSnails/p/17128123.html

handle -> handleInternal -> invokeHandlerMethod

public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
    return this.handleInternal(request, response, (HandlerMethod)handler);
}

跟进
protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    this.checkRequest(request);
    ModelAndView mav;
    if (this.synchronizeOnSession) {
        HttpSession session = request.getSession(false);
        /* http session 相关*/
        } else {
            mav = this.invokeHandlerMethod(request, response, handlerMethod);
        }
    } else {
        // 核心函数 invokeHandlerMethod
        mav = this.invokeHandlerMethod(request, response, handlerMethod);
    }
	......
    return mav;
}

核心函数 invokeHandlerMethod

protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
        HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        // WebDataBinderFactory --> 工厂类，为目标对象创建一个WebDataBinder实例
		// 1.WebDataBinder继承了DataBinder类，为web请求提供了：参数绑定服务
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);

        // 获取ModelFactory：
		// 2.主要是两个功能，1是在处理器具体处理之前对model进行初始化，2是在处理完请求后对model参数进行更新
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

		// 3.ServletInvocableHandlerMethod继承并扩展了InvocableHandlerMethod
        // 实际的请求处理、参数绑定、处理请求以及返回值处理 都在此处完成;核心对象
        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);

        // 4.四个set方法对invocableMethod设置属性
        // 设置参数处理器
        if (this.argumentResolvers != null) {
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }
        // 设置返回值处理器
        if (this.returnValueHandlers != null) {
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
        }
        // 设置参数绑定工厂
        invocableMethod.setDataBinderFactory(binderFactory);
        // 设置参数名称发现器
        invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);

		// 5.创建ModelAndViewContainer，并初始化Model对象，用于保存model和View对象
        ModelAndViewContainer mavContainer = new ModelAndViewContainer();
        // 将flashmap中的数据设置到model中
        mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
        // 使用modelFactory将sessionAttributes和注释了@ModelAttribute的方法的参数设置到model中
        modelFactory.initModel(webRequest, mavContainer, invocableMethod);
        // 根据配置对ignoreDefaultModelOnRedirect进行设置
        mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

        // 6.异步请求相关
        AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
        asyncWebRequest.setTimeout(this.asyncRequestTimeout);
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        asyncManager.setTaskExecutor(this.taskExecutor);
        asyncManager.setAsyncWebRequest(asyncWebRequest);
        asyncManager.registerCallableInterceptors(this.callableInterceptors);
        asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);
        if (asyncManager.hasConcurrentResult()) {
            Object result = asyncManager.getConcurrentResult();
            mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
            asyncManager.clearConcurrentResult();
            LogFormatUtils.traceDebug(logger, traceOn -> {
                String formatted = LogFormatUtils.formatValue(result, !traceOn);
                return "Resume with async result [" + formatted + "]";
            });
            invocableMethod = invocableMethod.wrapConcurrentResult(result);
        }

		// 7.调用Controller中的具体方法并处理返回值
        invocableMethod.invokeAndHandle(webRequest, mavContainer);
        if (asyncManager.isConcurrentHandlingStarted()) {
            return null;
        }

		// 8.返回ModelAndView对象
        // 处理完请求后的后置处理
        // 调用ModelFactory的updateModel方法更新model，包括设置SessionAttribute和给Model设置BinderResult
        // 根据mavContainer创建了ModelAndView
        // 如果mavContainer里的model是RedirectAttributes类型，则将其设置到FlashMap
        return getModelAndView(mavContainer, modelFactory, webRequest);
    }
    finally {
        // 完成请求后续处理,并将当前请求置为未激活
        webRequest.requestCompleted();
    }
}

最主要是为以下几步

  • 绑定参数
  • 创建ModelAndViewContainer对象
  • 处理器调用
  • 从ModelAndViewContainer中取出ModelAndView对象

有错别字的流程图如下

2

ServletInvocableHandlerMethod#invokeAndHandle

public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {
		// controller对应的函数的返回值
		Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
		setResponseStatus(webRequest);

		// 判断返回值是否为空
		if (returnValue == null) {
			if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
				disableContentCachingIfNecessary(webRequest);
				mavContainer.setRequestHandled(true);
				return;
			}
		}
		else if (StringUtils.hasText(getResponseStatusReason())) {
			mavContainer.setRequestHandled(true);
			return;
		}

		mavContainer.setRequestHandled(false);
		Assert.state(this.returnValueHandlers != null, "No return value handlers");
		try {
            // 处理返回值
			this.returnValueHandlers.handleReturnValue(
					returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
		}
		catch (Exception ex) {
			if (logger.isTraceEnabled()) {
				logger.trace(formatErrorForReturnValue(returnValue), ex);
			}
			throw ex;
		}
	}

一、跟进 InvocableHandlerMethod#invokeForRequest

public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {
    // 通过参数解析器获取参数
    Object[] args = this.getMethodArgumentValues(request, mavContainer, providedArgs);
    if (logger.isTraceEnabled()) {
        logger.trace("Arguments: " + Arrays.toString(args));
    }
    return this.doInvoke(args);
}

二、跟进 InvocableHandlerMethod#doInvoke

反射调用handler方法

protected Object doInvoke(Object... args) throws Exception {
    Method method = this.getBridgedMethod();

    try {
        return KotlinDetector.isSuspendingFunction(method) ? CoroutinesUtils.invokeSuspendingFunction(method, this.getBean(), args) : method.invoke(this.getBean(), args);
    }......
}

image-20241012115331479

在 this.returnValueHandlers.handleReturnValue 处理返回值时，设置controller的return值作为view属性

if (returnValue instanceof CharSequence) {
    String viewName = returnValue.toString();
    mavContainer.setViewName(viewName);
    if (isRedirectViewName(viewName)) {
        mavContainer.setRedirectModelScenario(true);
    }
}

image-20241012220502511

最后通过 getModelAndView 获取 ModelAndView 对象

private ModelAndView getModelAndView(ModelAndViewContainer mavContainer,
        ModelFactory modelFactory, NativeWebRequest webRequest) throws Exception {

    modelFactory.updateModel(webRequest, mavContainer);
    if (mavContainer.isRequestHandled()) {
        return null;
    }
    // 获取Model对象
    ModelMap model = mavContainer.getModel();
    // 创建ModelAndView对象，包含model和view
    ModelAndView mav = new ModelAndView(mavContainer.getViewName(), model, mavContainer.getStatus());
    if (!mavContainer.isViewReference()) {
        mav.setView((View) mavContainer.getView());
    }
    // 判断是不是Redirect
    if (model instanceof RedirectAttributes) {
        Map<String, ?> flashAttributes = ((RedirectAttributes) model).getFlashAttributes();
        HttpServletRequest request = webRequest.getNativeRequest(HttpServletRequest.class);
        if (request != null) {
            RequestContextUtils.getOutputFlashMap(request).putAll(flashAttributes);
        }
    }
    return mav;
}

最后来观察一下ModelAndView对象，主要有两个主要属性

  • view：返回的视图文件名称，该例为 thymeleaf/index
  • model：是一个map，存储着在controller中通过addAttribute添加的属性，该例为 code => test123

image-20241012221148429

applyDefaultViewName

判断ModelAndView中有没有view属性，换句话就是看你的controller代码中有没有return值，如果没有的话，将调用getDefaultViewName函数，将其返回值作为view属性。确保view属性不为空

private void applyDefaultViewName(HttpServletRequest request, @Nullable ModelAndView mv) throws Exception {
    if (mv != null && !mv.hasView()) {
        String defaultViewName = getDefaultViewName(request);
        if (defaultViewName != null) {
            mv.setViewName(defaultViewName);
        }
    }
}

跟进 DefaultRequestToViewNameTranslator#getViewName

public String getViewName(HttpServletRequest request) {
    String path = ServletRequestPathUtils.getCachedPathValue(request);
    return (this.prefix + transformPath(path) + this.suffix);
}

会将URI path作为视图名称

applyPostHandle

再次执行拦截器

void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
        throws Exception {
    for (int i = this.interceptorList.size() - 1; i >= 0; i--) {
        HandlerInterceptor interceptor = this.interceptorList.get(i);
        interceptor.postHandle(request, response, this.handler, mv);
    }
}

视图解析渲染

processDispatchResult

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
        @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
        @Nullable Exception exception) throws Exception {

    boolean errorView = false;
	// 一般直接跳过
    if (exception != null) {
        if (exception instanceof ModelAndViewDefiningException) {
            logger.debug("ModelAndViewDefiningException encountered", exception);
            mv = ((ModelAndViewDefiningException) exception).getModelAndView();
        }
        else {
            Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
            mv = processHandlerException(request, response, handler, exception);
            errorView = (mv != null);
        }
    }

    // Did the handler return a view to render?
    // 核心函数 render
    if (mv != null && !mv.wasCleared()) {
        render(mv, request, response);
        if (errorView) {
            WebUtils.clearErrorRequestAttributes(request);
        }
    }
    else {
        if (logger.isTraceEnabled()) {
            logger.trace("No view rendering, null ModelAndView returned.");
        }
    }

    if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
        // Concurrent handling started during a forward
        return;
    }

    if (mappedHandler != null) {
        // Exception (if any) is already handled..
        mappedHandler.triggerAfterCompletion(request, response, null);
    }
}

render

跟进核心函数：DispatcherServlet#render

protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
    // Determine locale for request and apply it to the response.
    // 国际化设置
    Locale locale =
            (this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
    response.setLocale(locale);

    View view;
    String viewName = mv.getViewName();
    if (viewName != null) {
        // We need to resolve the view name.
        // 核心函数：resolveViewName,获取最匹配的视图解析器
        view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
        ...
    }
    else {
        // No need to lookup: the ModelAndView object contains the actual View object.
        view = mv.getView();
        ...
    }
	...
    try {
        ...
        // 核心函数：render,调用视图解析器去渲染
        view.render(mv.getModelInternal(), request, response);
    }
	...
}

涉及两个核心函数

  • resolveViewName：获取最匹配的视图解析器
  • view#render：调用视图解析器去渲染

resolveViewName

一、跟进

protected View resolveViewName(String viewName, @Nullable Map<String, Object> model,
        Locale locale, HttpServletRequest request) throws Exception {

    if (this.viewResolvers != null) {
        for (ViewResolver viewResolver : this.viewResolvers) {
            // 核心
            View view = viewResolver.resolveViewName(viewName, locale);
            if (view != null) {
                return view;
            }
        }
    }
    return null;
}

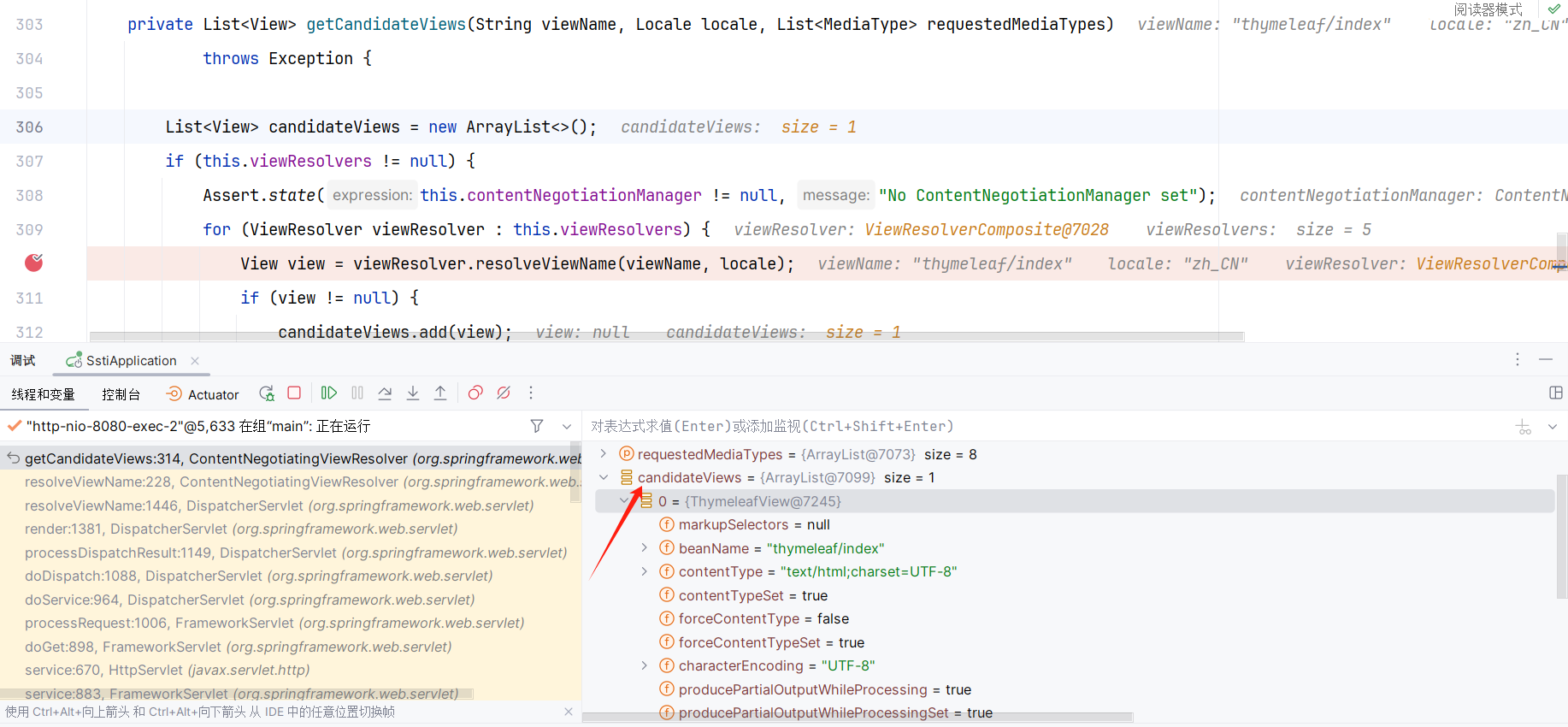

遍历视图解析器，分别调用各个视图解析器的resolveViewName方法根据viewName获取View对象(freemarker是自己多加的)

image-20241012231003458

在众多视图解析器中，首先进来的是 ContentNegotiatingViewResolver#resolveViewName

public View resolveViewName(String viewName, Locale locale) throws Exception {
    ...
    if (requestedMediaTypes != null) {
        // 核心函数
        List<View> candidateViews = getCandidateViews(viewName, locale, requestedMediaTypes);
        // 核心函数
        View bestView = getBestView(candidateViews, requestedMediaTypes, attrs);
        if (bestView != null) {
            return bestView;
        }
    }
	...
}

又是两个核心函数

1、首先通过 getCandidateViews 筛选出 resolveViewName 方法返回值不为null的视图解析器添加到 candidateViews中

image-20241013000147650

最后返回两个

image-20241013000626012

2、之后通过 getBestView 拿到最适配的解析器，getBestView中的逻辑是优先返回在 candidateViews 存在重定向动作的 view，接着判断ContentType是否匹配返回最适配的 View

private View getBestView(List<View> candidateViews, List<MediaType> requestedMediaTypes, RequestAttributes attrs) {
    // 是否是存在Redirect的View
    for (View candidateView : candidateViews) {
        if (candidateView instanceof SmartView) {
            SmartView smartView = (SmartView) candidateView;
            if (smartView.isRedirectView()) {
                return candidateView;
            }
        }
    }
    // 根据ContentType是否匹配
    for (MediaType mediaType : requestedMediaTypes) {
        for (View candidateView : candidateViews) {
            if (StringUtils.hasText(candidateView.getContentType())) {
                MediaType candidateContentType = MediaType.parseMediaType(candidateView.getContentType());
                if (mediaType.isCompatibleWith(candidateContentType)) {
                    mediaType = mediaType.removeQualityValue();
                    if (logger.isDebugEnabled()) {
                        logger.debug("Selected '" + mediaType + "' given " + requestedMediaTypes);
                    }
                    attrs.setAttribute(View.SELECTED_CONTENT_TYPE, mediaType, RequestAttributes.SCOPE_REQUEST);
                    return candidateView;
                }
            }
        }
    }
    return null;
}

最后返回ThymeleafView的view对象

render

目前已经获取了view对象(ThymeleafView)

image-20241013001647040

进入其render函数，调用 renderFragment

public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
    this.renderFragment(this.markupSelectors, model, request, response);
}

renderFragment中首先定义了一大堆的上下文

protected void renderFragment(Set<String> markupSelectorsToRender, Map<String, ?> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
    //servletContext
    ServletContext servletContext = this.getServletContext();
    String viewTemplateName = this.getTemplateName();
    //获取SpringTemplateEngine引擎
    ISpringTemplateEngine viewTemplateEngine = this.getTemplateEngine();
    if (viewTemplateName == null) {
        ...
    } else {
        Map<String, Object> mergedModel = new HashMap(30);
        Map<String, Object> templateStaticVariables = this.getStaticVariables();
        if (templateStaticVariables != null) {
            mergedModel.putAll(templateStaticVariables);
        }

        if (pathVariablesSelector != null) {
            Map<String, Object> pathVars = (Map)request.getAttribute(pathVariablesSelector);
            if (pathVars != null) {
                mergedModel.putAll(pathVars);
            }
        }

        if (model != null) {
            mergedModel.putAll(model);
        }
		//applicationContext
        ApplicationContext applicationContext = this.getApplicationContext();
        //requestContext
        RequestContext requestContext = new RequestContext(request, response, this.getServletContext(), mergedModel);
        //thymeleafRequestContext
        SpringWebMvcThymeleafRequestContext thymeleafRequestContext = new SpringWebMvcThymeleafRequestContext(requestContext, request);
        addRequestContextAsVariable(mergedModel, "springRequestContext", requestContext);
        addRequestContextAsVariable(mergedModel, "springMacroRequestContext", requestContext);
        mergedModel.put("thymeleafRequestContext", thymeleafRequestContext);
        ConversionService conversionService = (ConversionService)request.getAttribute(ConversionService.class.getName());
        //evaluationContext
        ThymeleafEvaluationContext evaluationContext = new ThymeleafEvaluationContext(applicationContext, conversionService);
        mergedModel.put("thymeleaf::EvaluationContext", evaluationContext);

        // 获取SpringTemplateEngine配置文件
        IEngineConfiguration configuration = viewTemplateEngine.getConfiguration();
        //通过前面众多context上下文构造出WebExpressionContext
        WebExpressionContext context = new WebExpressionContext(configuration, request, response, servletContext, this.getLocale(), mergedModel);

        String templateName;
        Set markupSelectors;

        //重点：判断模板文件名(return值)是否包含 `::`
        if (!viewTemplateName.contains("::")) {
            templateName = viewTemplateName;
            markupSelectors = null;
        } else {
            // 这里是SSTI漏洞触发点之一，这里先略过
            IStandardExpressionParser parser = StandardExpressions.getExpressionParser(configuration);
            FragmentExpression fragmentExpression;
            try {
                fragmentExpression = (FragmentExpression)parser.parseExpression(context, "~{" + viewTemplateName + "}");
            } catch (TemplateProcessingException var25) {
                throw new IllegalArgumentException("Invalid template name specification: '" + viewTemplateName + "'");
            }

            FragmentExpression.ExecutedFragmentExpression fragment = FragmentExpression.createExecutedFragmentExpression(context, fragmentExpression);
            templateName = FragmentExpression.resolveTemplateName(fragment);
            markupSelectors = FragmentExpression.resolveFragments(fragment);
            Map<String, Object> nameFragmentParameters = fragment.getFragmentParameters();
            if (nameFragmentParameters != null) {
                if (fragment.hasSyntheticParameters()) {
                    throw new IllegalArgumentException("Parameters in a view specification must be named (non-synthetic): '" + viewTemplateName + "'");
                }

                context.setVariables(nameFragmentParameters);
            }
        }
		// 不包含 `::` 就跳到这里
        String templateContentType = this.getContentType();
        //一些关于ContentType和Encoding的操作
        ...

        boolean producePartialOutputWhileProcessing = this.getProducePartialOutputWhileProcessing();
        Writer templateWriter = producePartialOutputWhileProcessing ? response.getWriter() : new FastStringWriter(1024);
        // 核心函数process,thymeleaf便会根据配置的Resolver路径找到模板并解析通过io返回
        viewTemplateEngine.process(templateName, processMarkupSelectors, context, (Writer)templateWriter);
        if (!producePartialOutputWhileProcessing) {
            response.getWriter().write(templateWriter.toString());
            response.getWriter().flush();
        }
    }
}

其核心函数process作用为thymeleaf会根据配置的Resolver路径找到模板并解析通过io返回，函数代码如下

try {
    final long startNanos = System.nanoTime();
    final TemplateManager templateManager = this.configuration.getTemplateManager();

    // 2.找到模板并且处理
    templateManager.parseAndProcess(templateSpec, context, writer);

    final long endNanos = System.nanoTime();
    try {
        // 3.io刷新到请求页面
        writer.flush();
    } catch (final IOException e) {
        throw new TemplateOutputException("An error happened while flushing output writer", templateSpec.getTemplate(), -1, -1, e);
    }

再跟进 parseAndProcess

public void parseAndProcess(TemplateSpec templateSpec, IContext context, Writer writer) {
    ...

    TemplateResolution templateResolution = resolveTemplate(this.configuration, (String)null, template, templateResolutionAttributes, true);
    //构建templateData
    TemplateData templateData = buildTemplateData(templateResolution, template, templateSelectors, templateMode, true);
    //处理request与response放入到IEngineContext中，处理varilable
    IEngineContext engineContext = EngineContextManager.prepareEngineContext(this.configuration, templateData, templateResolutionAttributes, context);
    ProcessorTemplateHandler processorTemplateHandler = new ProcessorTemplateHandler();
    ITemplateHandler processingHandlerChain = createTemplateProcessingHandlerChain(engineContext, true, true, processorTemplateHandler, writer);

    // 真正执行模板解析的工具
    ITemplateParser parser = this.getParserForTemplateMode(engineContext.getTemplateMode());

    if (templateResolution.getValidity().isCacheable() && this.templateCache != null) {
        ModelBuilderTemplateHandler builderHandler = new ModelBuilderTemplateHandler(this.configuration, templateData);
        parser.parseStandalone(this.configuration, (String)null, template, templateSelectors, templateData.getTemplateResource(), engineContext.getTemplateMode(), templateResolution.getUseDecoupledLogic(), builderHandler);
        TemplateModel templateModel = builderHandler.getModel();
        this.templateCache.put(cacheKey, templateModel);
        templateModel.process(processingHandlerChain);
    } else {
        // 核心函数，解析模板
        parser.parseStandalone(this.configuration, (String)null, template, templateSelectors, templateData.getTemplateResource(), engineContext.getTemplateMode(), templateResolution.getUseDecoupledLogic(), processingHandlerChain);
    }

    EngineContextManager.disposeEngineContext(engineContext);
}

parser.parseStandalone最终会调用 AbstractMarkupTemplateParser#parse 方法，有两个关键，一个是读取模板，一个是解析模板

// 读取模板，会调用之前绑定的resource解析器
Reader templateReader = (resource != null? resource.reader() : new StringReader(template));

// 解析模板
templateReader = new ParserLevelCommentMarkupReader(new PrototypeOnlyCommentMarkupReader(templateReader));
this.parser.parse(templateReader, handler);

参考

https://pdai.tech/md/spring/spring-x-framework-springmvc-source-2.html

https://pdai.tech/files/kaitao-springMVC.pdf

thymeleaf源码解读

SpringMVC源码学习(六)—解析HandlerMethod执行过程_invokehandlermethod

SpringMVC源码学习 | huahua’s Blog
